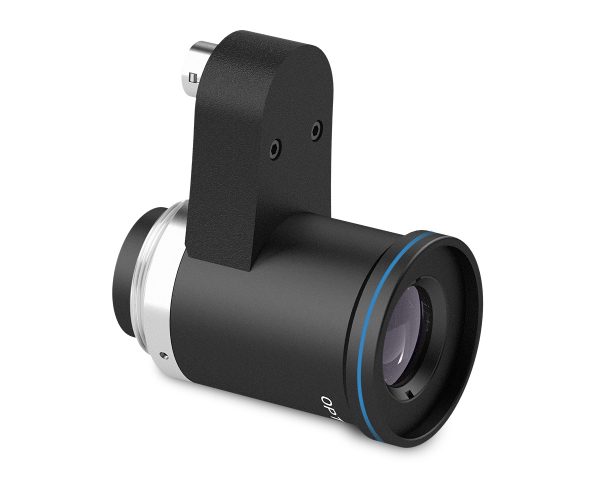

EL5MP0856

Specification	Value
Focal length	8 (mm)
Magnification	0.086 (x)
Image circle diameter	11.0 (mm)
Max sensor size	2/3″
1/3″	41.4 (deg)
1/1.8″	58.9 (deg)
2/3″	70.0 (deg)
1/3″	55.81 x 41.86
1/1.8″	82.91 x 61.98
2/3″	98.84 x 82.44
Working distance range	80 – inf (mm)
f/N	5.6
Back focal length	8.7 (mm)
Distortion	< 2.5 (%)
Liquid lens model	Optotune EL-3-10
Temperature sensor	Yes
Focal power mode	Yes
Response time	1 (ms)
Setting time	4 (ms)
Current range	-120 to +120 (mA)
Lifecycles (10%-90% sinusoidal)	>1,000,000,000
Connector	HR10A-7R-6PB
Mount	C
Phase adjustment	Yes
Filter thread	M30.5 x 0.5
Front diameter	33.0 (mm)
Length	42.3 (mm)
Mass	88 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Opis

Calculated at minimum object distance.
Working distance: distance between the front end of the mechanics and the object.
Percent deviation of the real image compared to an ideal, undistorted image.
Typical at 30°C, 0 to ±250 mA step.
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
Connector	HR10A-7R-6PB
Optmag	0.086 (x)
Accessory developer	Opto
Zoom ratio	0.086 (x)
Max sensor size	2/3″
Mount	C
Lifecycle (1090% sin)	>1,000,000,000
1 1 8	82.91 x 61.98 (mm x mm)
Phase adjustment	Yes
Mass	88 (g)
Image circle diameter	11.0 (mm)
Length	42.3 (mm)
Front diameter	33.0 (mm)
Distortion	< 2.5 (%)
Operating temperature	0-40 (°C)
Focal length	8 (mm)
Temperature sensor	Yes
Magnification	0.086 (x)
Current range	-120 to +120 (mA)
Setting time	4 (ms)
Response time	1 (ms)
Focal power mode	Yes
Liquid lens model	Optotune EL-3-10
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Filter thread	M30.5 x 0.5
Back focal length	8.7 (mm)
F/n	5.6
Working distance range	80 – inf (mm)
Installation	Indoor use only
Focal length (mm)	8 (mm)
