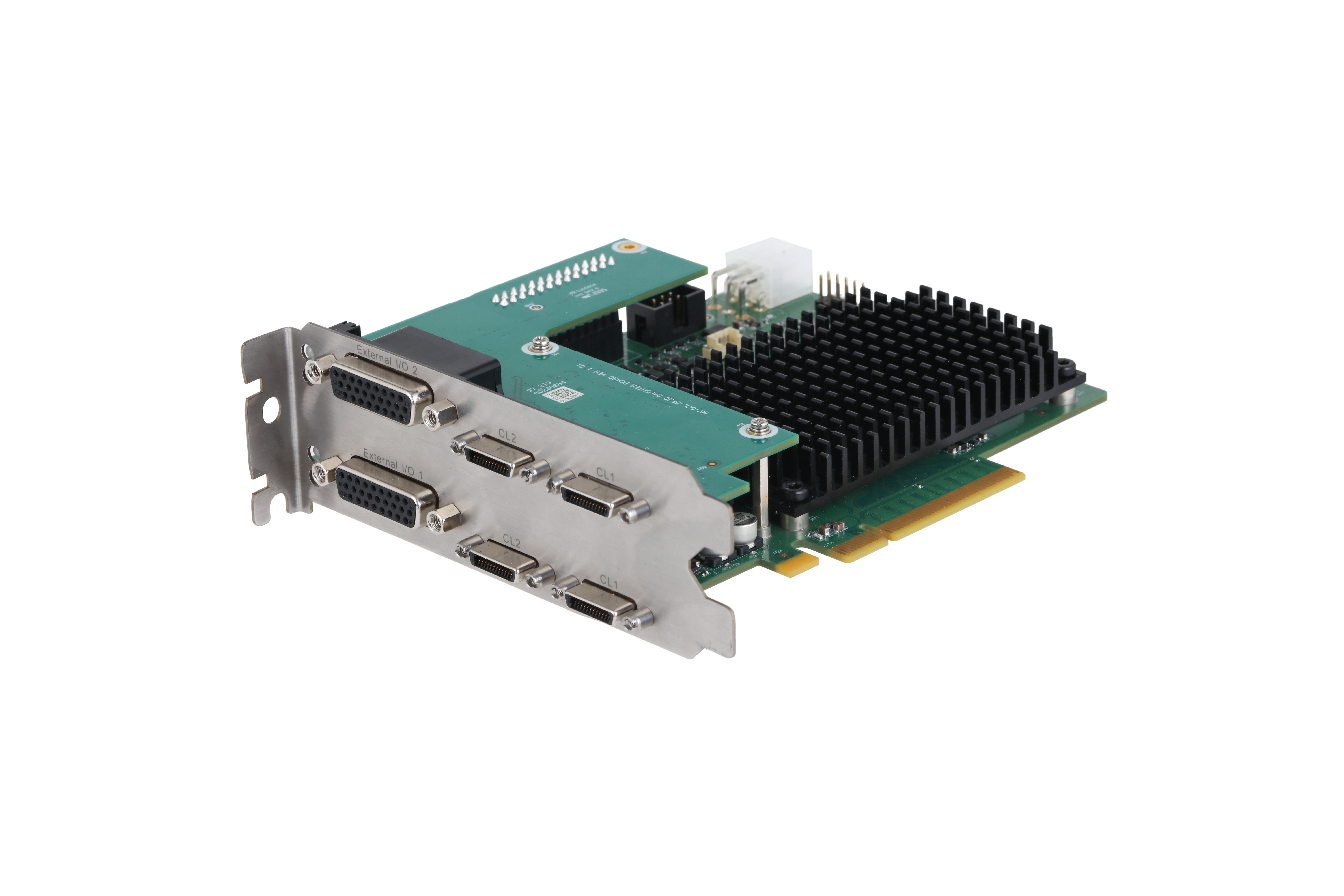

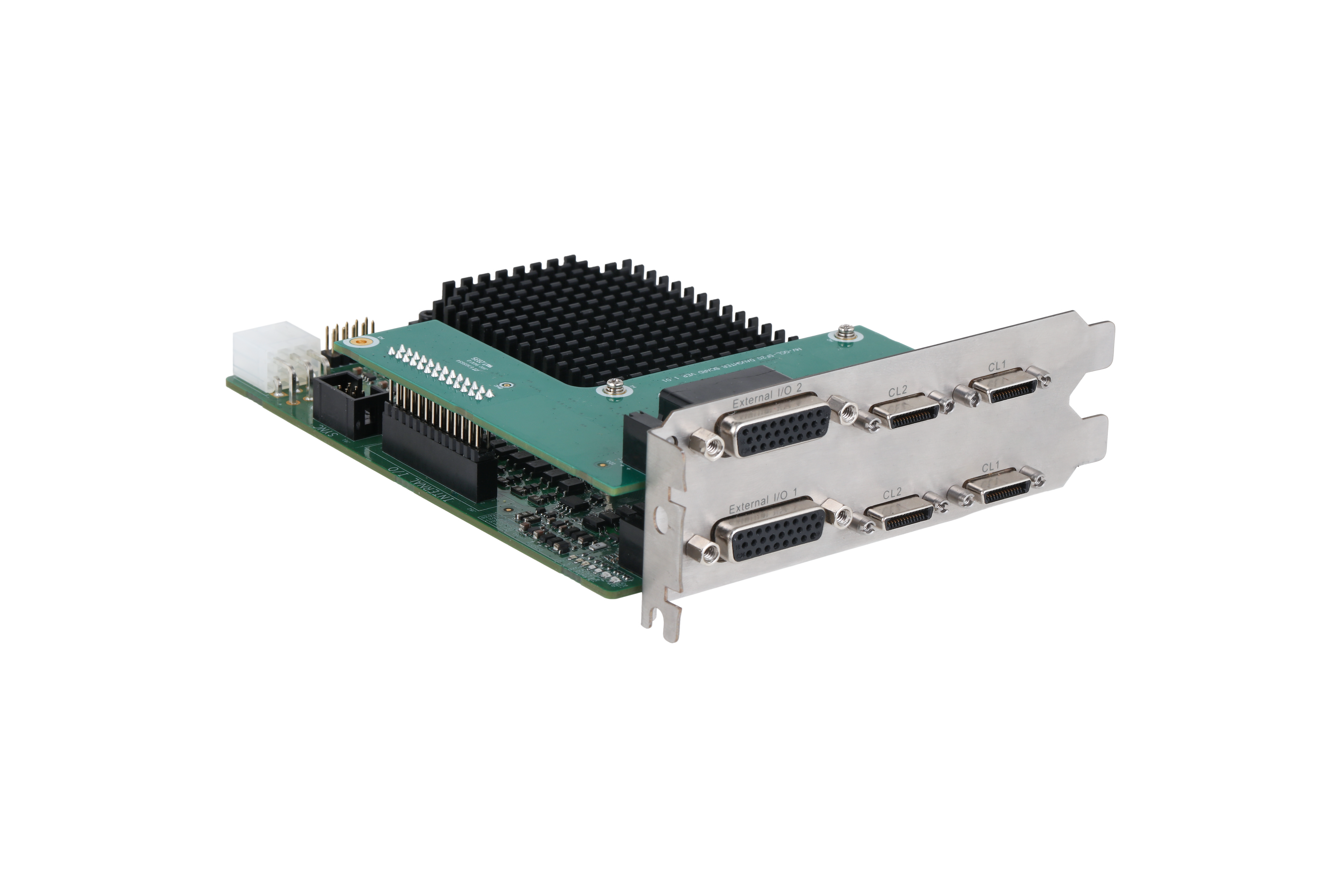

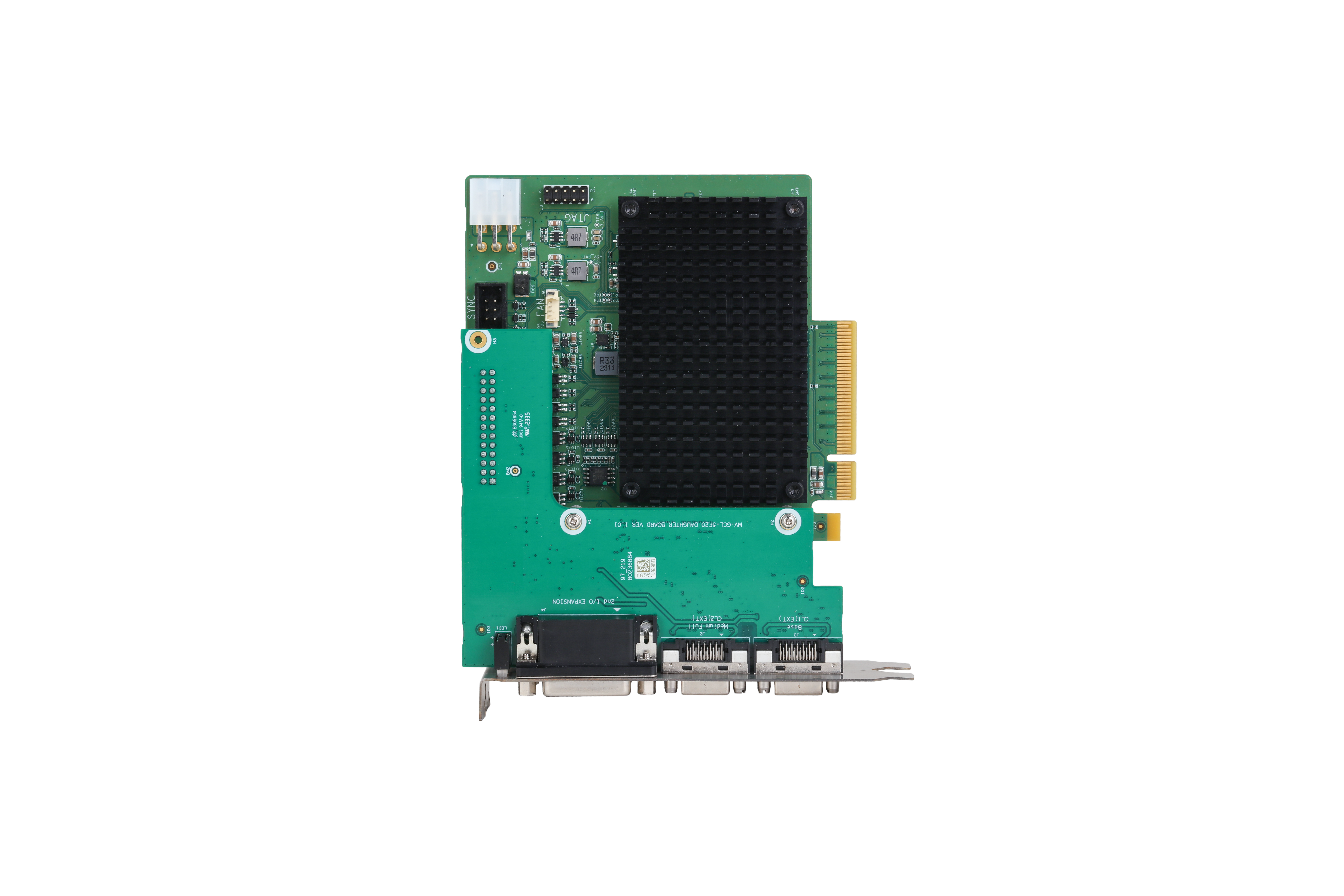

GCL-5F40E
GCL-5F40E - obrazek 2
GCL-5F40E - obrazek 3

GCL-5F40E

Type CamerLink Frame Grabber
Model GCL-5F40E
Protocol Camera Link 2.0
Pixel Format Mono 8/10/12Bayer 8/10/12/RGB 8
Transmission Configurations Medium/Full/80bit
Clock Frequency 20MHz~85MHz
Taps 1/2/3/4/8/10tap
On-board Memory 1GB
Camera Compatibility Camera Link Interface Industrial Cameras
Number of Cameras 2 x 80-bit, Full, Medium
Software Mv Viewer2.4.1
Operating System Windows 7/8/10 64 bit
Power Supply PCIe/ATX 6-pin Connector
Power Consumption 9.2W (without PoCL)
Product Dimensions 151.1mmx126.3mmx41.9mm
Net Weight 0.24kg
Host Bus Standard PCIe 2.0 x8 (occupies 2 PCIe slot locations)
Host Bus Link speed 5GT/s?PCIe 2.0?
Delivery bandwidth 1780MB/s(Peak delivery bandwidth), 1650 MB/s (Sustained delivery bandwidth)
Interface SDRx4
I/O Lines 10 IOs up and down? • 2x differential input(Single-end Supported) • 4x Opto-isolated Input (DIN) • 4x Opto-isolated Output (DOUT)
Connector 26-pin pole top and bottom 3-row high-density female sub-D connector
Transfer Rate 6.8 Gbps(850 MB/s)
Operating Temperature 0~50?
Storage Temperature -20~70?
Operating Humidity 10% ~ 90%RH, non-condensing
Storage Humidity 10% ~ 90%RH, non-condensing
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  • Supports PoCL(Power over Camera Link)
  • Clock frequency coversthe range from 20 MHz up to 85 MHz
  • Supports Medium,Full,80-Bit configuration modes
  • Supports multiple I/O channels
  • Compatible with Cameralink 2.0 protocol
  • Compatible with Genlcam standard

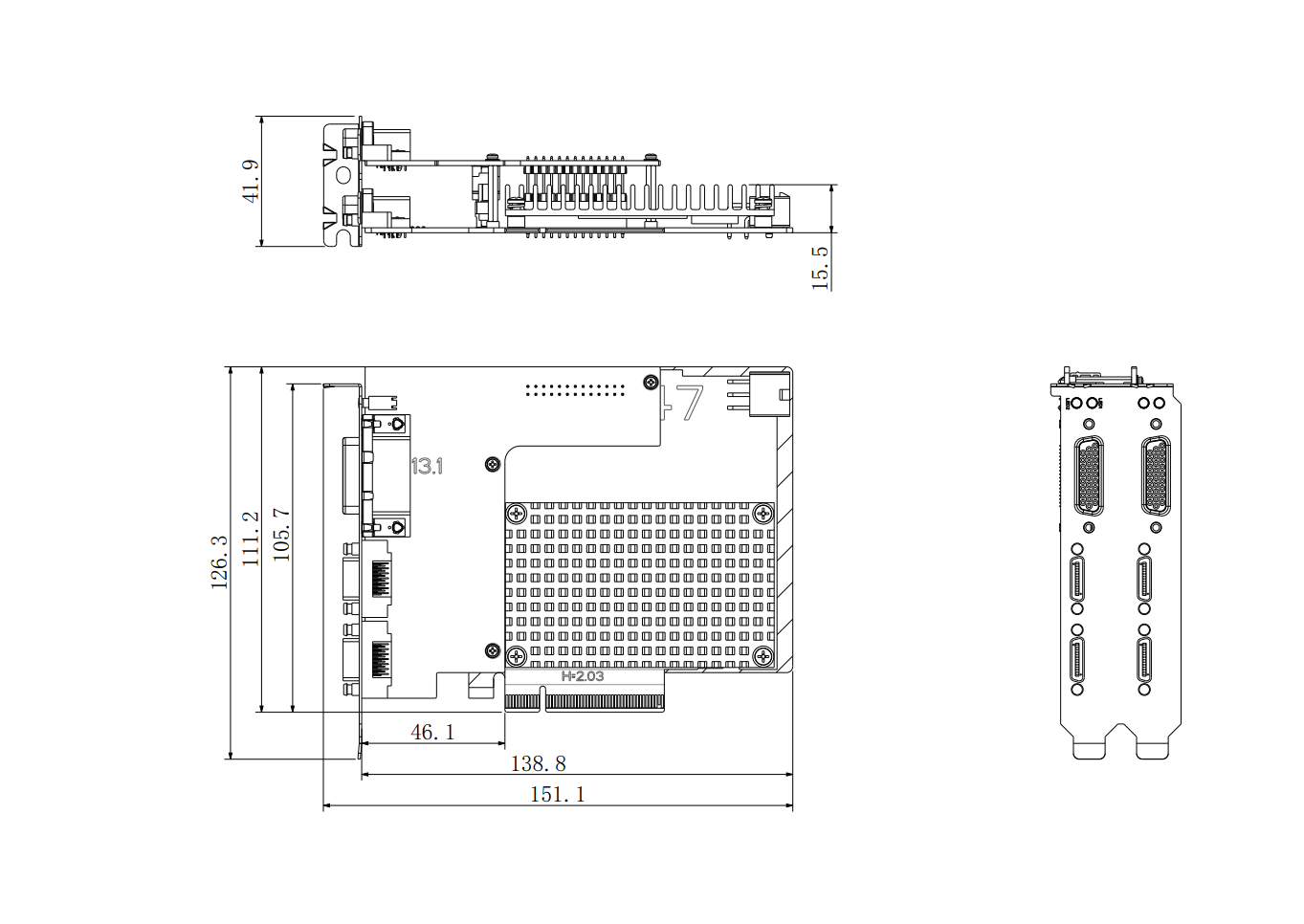

Dimensions

Downloads

Informacje dodatkowe

Connector

26-pin pole top and bottom 3-row high-density female sub-D connector
Interface

SDRx4
Operating humidity

10% ~ 90%RH, non-condensing
Power consumption

9.2W (without PoCL)
Power supply

PCIe/ATX 6-pin Connector
Product type

CamerLink Frame Grabber
Software

Mv Viewer2.4.1
Storage temperature

-20~70℃
Protocol

Camera Link 2.0
Camera compatibility

Camera Link Interface Industrial Cameras
Number of cameras

2 x 80-bit, Full, Medium
Operating system

Windows 7/8/10 64 bit
Host bus standard

PCIe 2.0 x8 (occupies 2 PCIe slot locations)
Host bus link speed

5GT/s（PCIe 2.0）
Delivery bandwidth

1780MB/s(Peak delivery bandwidth), 1650 MB/s (Sustained delivery bandwidth)
Transfer rate

6.8 Gbps(850 MB/s)
Storage humidity

10% ~ 90%RH, non-condensing
I/o lines

10 IOs up and down： • 2x differential input(Single-end Supported) • 4x Opto-isolated Input (DIN) • 4x Opto-isolated Output (DOUT)
Pixel format

Mono 8/10/12Bayer 8/10/12/RGB 8
Transmission configurations

Medium/Full/80bit
Clock frequency

20MHz~85MHz
Taps

1/2/3/4/8/10tap
On board memory

1GB
