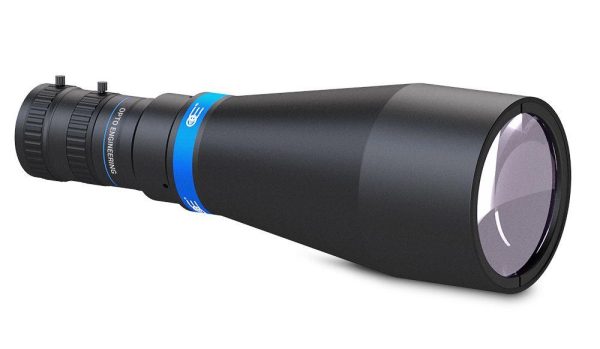

HCBI023

Specification	Value
Image circle diameter	6.7 (mm)
Min sensor size	2/3″
Maximum	220.0 x – (mm x mm)
Medium	100.0 x – (mm x mm)
Minimum	30.0 x – (mm x mm)
Working distance with maximum object	473.8 (mm)
Working distance with medium object	242.6 (mm)
Working distance with minimum object	107.2 (mm)
Convergence point distance	50.0 (mm)
Angle of view	30 (deg)
f/N	1.6 – 22
Mount	C
Length	249.1 (mm)
Front diameter	84.0 (mm)
Mass	1151 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Opis

Working distance: distance between the front end of the mechanics and the object.
Distance between the front end of the mechanics and the point where all the optical rays coming from the object converge (entrance pupil).
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
F/n	1.6 – 22
Convergence point distance	50.0 (mm)
Image circle diameter	6.7 (mm)
Length	249.1 (mm)
Front diameter	84.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Mass	1151 (g)
Min sensor size	2/3"
Operating relative humidity	20-85, non condensing (%)
Minimum	30.0 x – (mm x mm)
Maximum	220.0 x – (mm x mm)
Wd (min object)	107.2 (mm)
Wd (max object)	473.8 (mm)
Angle of view	30 (deg)
Medium	100.0 x – (mm x mm)
Wd (med object)	242.6 (mm)
Mount	C
Accessory developer	Opto
