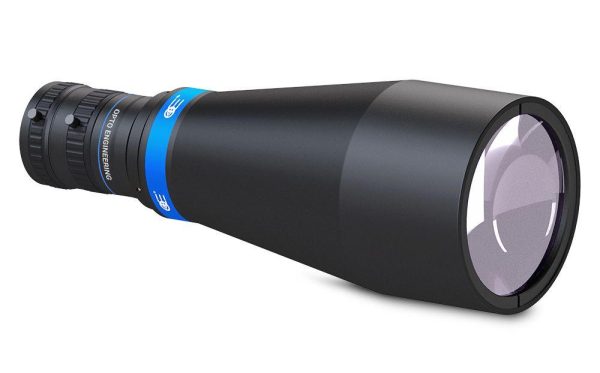

HCBI3M

Specification	Value
Image circle diameter	10.8 (mm)
Min sensor size	1.1″
Maximum	220.0 x – (mm x mm)
Medium	100.0 x – (mm x mm)
Minimum	45.0 x – (mm x mm)
Working distance with maximum object	473.8 (mm)
Working distance with medium object	242.6 (mm)
Working distance with minimum object	138.8 (mm)
Convergence point distance	50.0 (mm)
Angle of view	30 (deg)
f/N	1.4 – 22
Mount	C
Length	228.5 (mm)
Front diameter	84.0 (mm)
Mass	1105 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Opis

Working distance: distance between the front end of the mechanics and the object.
Distance between the front end of the mechanics and the point where all the optical rays coming from the object converge (entrance pupil).
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
F/n	1.4 – 22
Convergence point distance	50.0 (mm)
Image circle diameter	10.8 (mm)
Length	228.5 (mm)
Front diameter	84.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Mass	1105 (g)
Min sensor size	1.1"
Operating relative humidity	20-85, non condensing (%)
Minimum	45.0 x – (mm x mm)
Maximum	220.0 x – (mm x mm)
Wd (min object)	138.8 (mm)
Wd (max object)	473.8 (mm)
Angle of view	30 (deg)
Medium	100.0 x – (mm x mm)
Wd (med object)	242.6 (mm)
Mount	C
Accessory developer	Opto
