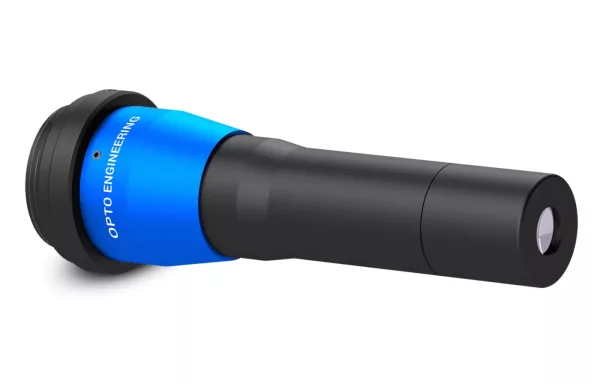

HCN13040

Specification	Value
Image circle diameter	3.8 (mm)
Min sensor size	1/3″
Maximum	10.0 x 25.0 (mm x mm)
Medium	6.0 x 15.0 (mm x mm)
Minimum	2.0 x 5.0 (mm x mm)
Working distance with maximum object	26.0 (mm)
Working distance with medium object	16.0 (mm)
Working distance with minimum object	12.0 (mm)
Convergence point distance	10.4 (mm)
Angle of view	34 (deg)
f/N	24
Mount	C
Length	93.5 (mm)
Front diameter	19.0 (mm)
Mass	71 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Opis

Working distance: distance between the front end of the mechanics and the object.
Distance between the front end of the mechanics and the point where all the optical rays coming from the object converge (entrance pupil).
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
F/n	24
Convergence point distance	10.4 (mm)
Image circle diameter	3.8 (mm)
Length	93.5 (mm)
Front diameter	19.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Mass	71 (g)
Min sensor size	1/3"
Operating relative humidity	20-85, non condensing (%)
Minimum	2.0 x 5.0 (mm x mm)
Maximum	10.0 x 25.0 (mm x mm)
Wd (min object)	12.0 (mm)
Wd (max object)	26.0 (mm)
Angle of view	34 (deg)
Medium	6.0 x 15.0 (mm x mm)
Wd (med object)	16.0 (mm)
Mount	C
Accessory developer	Opto
