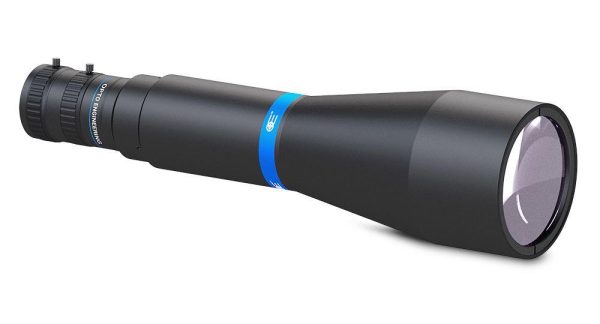

HCSI023

Specification	Value
Image circle diameter	6.7 (mm)
Min sensor size	2/3″
Maximum	110.0 x 330.0 (mm x mm)
Medium	50.0 x 150.0 (mm x mm)
Minimum	10.0 x 30.0 (mm x mm)
Working distance with maximum object	143.8 (mm)
Working distance with medium object	92.6 (mm)
Working distance with minimum object	58.1 (mm)
Convergence point distance	50.0 (mm)
Angle of view	60 (deg)
f/N	1.6 – 22
Mount	C
Length	324.5 (mm)
Front diameter	84.0 (mm)
Mass	1331 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Opis

Working distance: distance between the front end of the mechanics and the object.
Distance between the front end of the mechanics and the point where all the optical rays coming from the object converge (entrance pupil).
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
F/n	1.6 – 22
Convergence point distance	50.0 (mm)
Image circle diameter	6.7 (mm)
Length	324.5 (mm)
Front diameter	84.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Mass	1331 (g)
Min sensor size	2/3"
Operating relative humidity	20-85, non condensing (%)
Minimum	10.0 x 30.0 (mm x mm)
Maximum	110.0 x 330.0 (mm x mm)
Wd (min object)	58.1 (mm)
Wd (max object)	143.8 (mm)
Angle of view	60 (deg)
Medium	50.0 x 150.0 (mm x mm)
Wd (med object)	92.6 (mm)
Mount	C
Accessory developer	Opto
