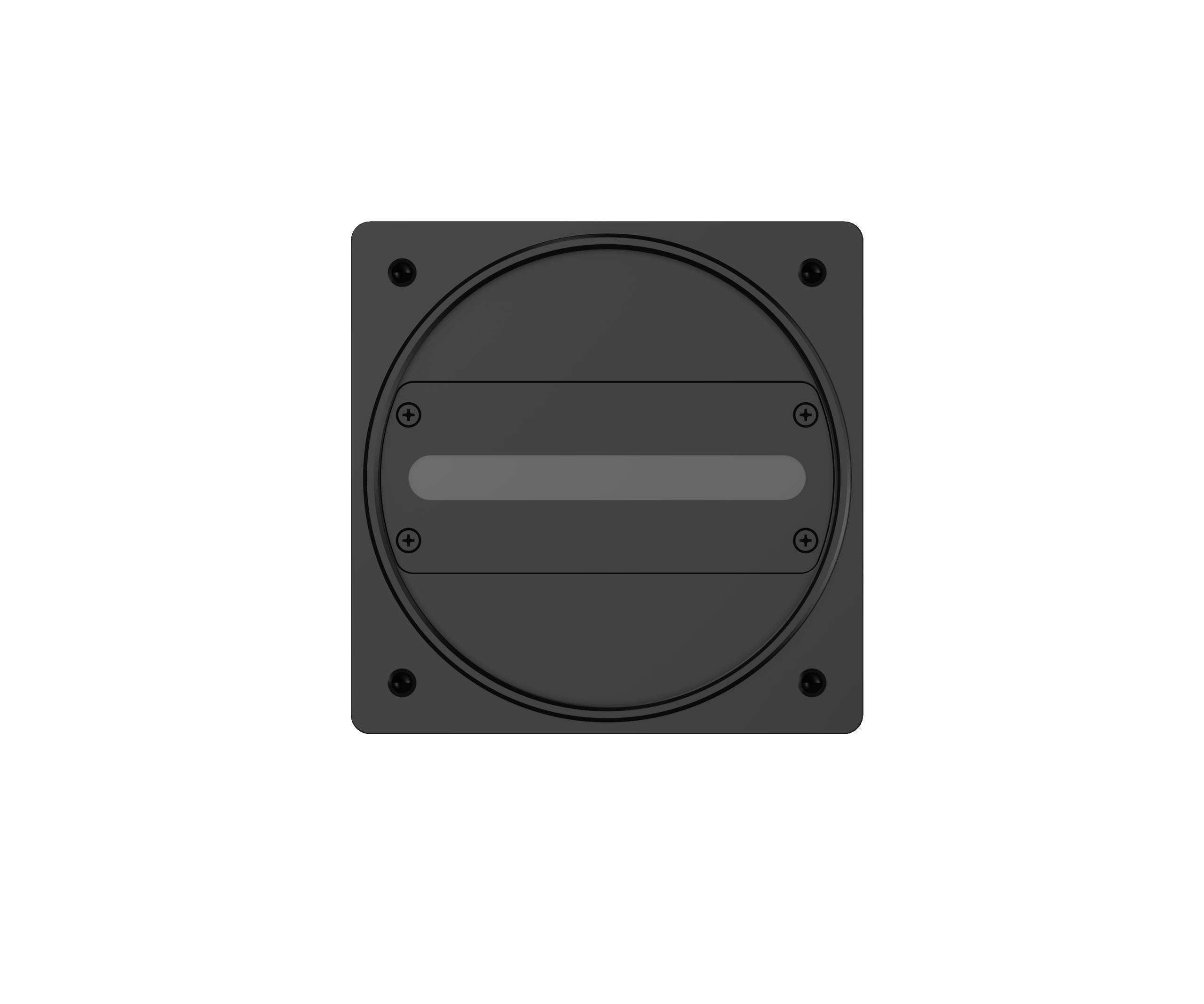

L5087MK471E

Sensor	8K
Image Sensor	CMOS
Shutter	Global
Resolution	8192×4
Line Rate	100K
Bit Depth	12
Mono/Color	Mono
Pixel Size	7 μm × 7 μm
Pixel	8192×4
S/N Ratio	40dB
Dynamic Range	63.3dB
Image Format	Mono8/10
Binning	Support
ROI	Support
X Flip	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	4μS~100mS
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
FPN	Support
TDI Stages	singleLine;fourLine;two_tdi
User Setting	Support two sets of user-defined configurations
Pixel Clock	51/67/75/85MHz
Port	CameraLink
GPIO Interface	4 differential input, output, and 1 GPIO input, output
Lens Mount	M72
Power Supply	DC 12~24V power supply via 12-pin Hirose connector
Power Consumption	8.5W
Product Dimensions	80mm×64mm×47.1mm (Not including rear case connector)
Net Weight	520 g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Opis

CameraLink supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth
Supports external trigger, free run mode and multiple modes
Supports Gamma correction, LUT and other ISP functions
Applies DC 24V power supply
Compatible with Cameralink protocol and GenICam standard
Comply with CE, FCC, UL, RoHS certifications
Supportsfourline,TDI mode .

Binning	Support
Bit depth	12
Dynamic range	63.3dB
Exposure time	4us~100mS
Fpn	Support
Gain	1~32
Gamma	From 0 to 4，support LUT
Gpio interface	4 differential input, output, and 1 GPIO input, output
Image format	Mono8/10
Image sensor	CMOS
Lens mount	M72
Line-rate	100K
Pixel	8192×4
Pixel size	7 um x 7 um
Port	CameraLink
Power consumption	8.5W
Power supply	DC 12~24V power supply via 12-pin Hirose connector
Resolution	8192×4
Roi	Support
Sensor	8K
Shutter	Global
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
X flip	Support
Mono-color	Mono
S/n ratio	40dB
Tdi stages	singleLine;fourLine;two_tdi
Pixel clock	51/67/75/85MHz
