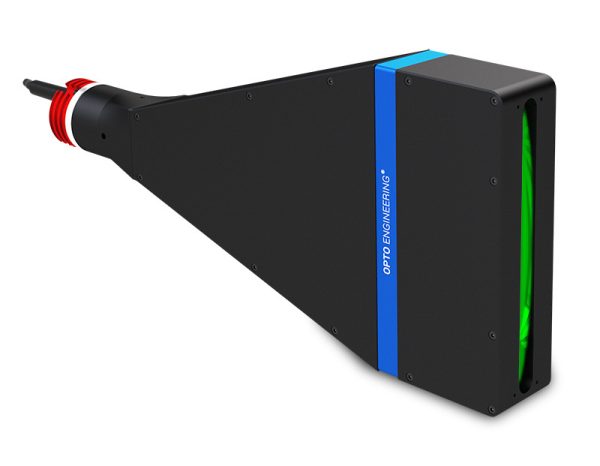

LTCL4K120-G

Specification	Value
Minimum beam shape dimension	132 x 10 (mm)
Working distance range	90 – 300 (mm)
Light color, peak wavelength	green, 525 nm
Spectral FWHM	40 (nm)
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED forward voltage typical (max)	3.3 (4.0) (V)
Max LED forward current	350 (mA)
Max pulse current	2000 (mA)
Connector	M8
Cables	CB244P1500 included
Length	305.3 (mm)
Width	144.0 (mm)
Height	38.5 (mm)
Mass	1559 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 1

Opis

Beam shape is not circular. See Tech Info for minimun beam dimensions.
Opto Engineering® recommends green light for high precision measurement applications.
Tolerance ± 10%.
At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
In continuous mode (non-pulsed).
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info).
Nominal value, with no spacers in place.

Mass	1559 (g)
Installation	Indoor use only
Light color, peak wavelength	green, 525 nm
Accessory developer	Opto
Minimum beam shape dimension	132 x 10 (mm)
Connector	M8
Supply voltage	12-24 (V)
Height	38.5 (mm)
Width	144.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Length	305.3 (mm)
Color	green, 525 nm
Working distance range	90 – 300 (mm)
Max power consumption	2.5 (W)
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 1
Spectral fwhm	40 (nm)
Cables	CB244P1500 included
Led fwd volt (typ/max)	3.3 (4.0) (V)
Max led forward current	350 (mA)
Max pulse current	2000 (mA)
Operation power source
