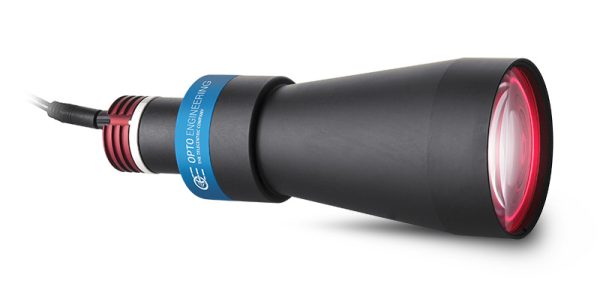

LTCLHP056-R

LTCLHP056-R

Specification Value
Beam diameter 70 (mm)
Working distance range 100 – 200 (mm)
Light color, peak wavelength red, 625 nm
Spectral FWHM 20 (nm)
Supply voltage 12-24 (V)
Max power consumption 2.5 (W)
LED forward voltage typical (max) 2.4 (3) (V)
Max LED forward current 350 (mA)
Max pulse current 2000 (mA)
Connector M8
Cables CB244P1500 included
Length 210.5 (mm)
Front diameter 80.0 (mm)
Mass 806 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Exempt
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  1. Opto Engineering® recommends green light for high precision measurement applications
  2. Tolerance ± 10%
  3. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  4. In continuous mode (non-pulsed)
  5. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  6. Nominal value, with no spacers in place

Informacje dodatkowe

Mass

806 (g)
Working distance range

100 – 200 (mm)
Max pulse current

2000 (mA)
Accessory developer

Opto
Max led forward current

350 (mA)
Front diameter

80.0 (mm)
Connector

M8
Supply voltage

12-24 (V)
Operating temperature

0-40 (°C)
Storage temperature

0-50 (°C)
Installation

Indoor use only
Length

210.5 (mm)
Max power consumption

2.5 (W)
Color

red, 625 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Spectral fwhm

20 (nm)
Cables

CB244P1500 included
Beam diameter

70 (mm)
Led fwd volt (typ/max)

2.4 (3) (V)
Light color, peak wavelength

red, 625 nm
