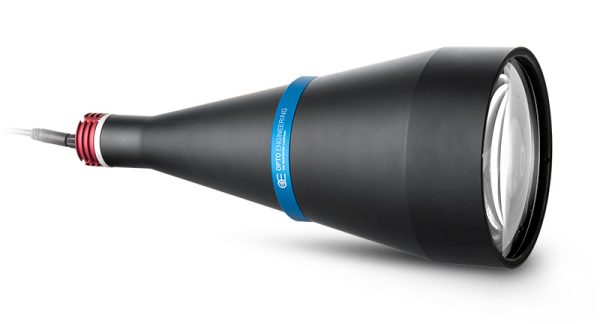

LTCLHP096-W

Specification	Value
Beam diameter	120 (mm)
Working distance range	200 – 350 (mm)
Light color, peak wavelength	white, 6000 K
Spectral FWHM	– (nm)
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED forward voltage typical (max)	2.8 (-) (V)
Max LED forward current	350 (mA)
Max pulse current	2000 (mA)
Connector	M8
Cables	CB244P1500 included
Length	322.8 (mm)
Front diameter	143.0 (mm)
Mass	2144 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 2

Opis

Opto Engineering® recommends green light for high precision measurement applications
Tolerance ± 10%
At max forward current. Tolerance is ± 0.06V on forward voltage measurements
In continuous mode (non-pulsed)
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
Nominal value, with no spacers in place

Mass	2144 (g)
Installation	Indoor use only
Max pulse current	2000 (mA)
Accessory developer	Opto
Max led forward current	350 (mA)
Front diameter	143.0 (mm)
Connector	M8
Supply voltage	12-24 (V)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Length	322.8 (mm)
Color	white, 6000 K
Working distance range	200 – 350 (mm)
Max power consumption	2.5 (W)
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 2
Cables	CB244P1500 included
Beam diameter	120 (mm)
Led fwd volt (typ/max)	2.8 (-) (V)
Light color, peak wavelength	white, 6000 K
