Measured at minimum working distance | ± 2%. | With constant driving voltage. | Drop to 50% intensity @ 25°C.

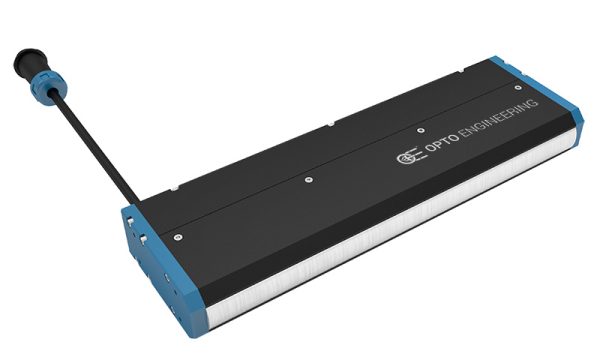

LTLNE-300-N-D-PC-W
| Specification | Value |
|---|---|
| Illumination area length | 300 (mm) |
| Illumination area height | 20 (mm) |
| Type | direct |
| Focusing | near |
| Optimal working distance | 10-100 (mm) |
| Number of LEDs | 42 |
| Light color, peak wavelength | white, 6200 K |
| Illuminance | n.a. (klux) |
| Diffuser | yes |
| Supply voltage | 24 |
| Current | 2000 (mA) |
| Power consumption | 50 (W) |
| Estimated MTBF | > 20000 (hours) |
| Connector | WEIPU SP1710/P9 |
| Cables | CBLT007 included |
| Length | 340 (mm) |
| Width | 95 (mm) |
| Height | 40 (mm) |
| Mass | 2300 (g) |
| Clamping system | 8x M4 threaded holes |
| Cooling method | passive |
| Operating temperature | 0-40 (°C) |
| Storage temperature | -20-+60 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| Risk group according to CEI EN 62471:2010 | Risk group 2 |
Informacje dodatkowe
| Mass | 2300 (g) |
|---|---|
| Length | 340 (mm) |
| Operation power source | 2000 (mA) |
| Light color, peak wavelength | white, 6200 K |
| Accessory developer | Opto |
| Focusing | near |
| Connector | WEIPU SP1710/P9 |
| Product type | direct |
| Supply voltage | 24 |
| Height | 40 (mm) |
| Width | 95 (mm) |
| Operating temperature | 0-40 (°C) |
| Storage temperature | -20-+60 (°C) |
| Installation | Indoor use only |
| Color | white, 6200 K |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group (cei 62471) | Risk group 2 |
| Illumination area height | 20 (mm) |
| Number of leds | 42 |
| Illuminance | n.a. (klux) |
| Diffuser | yes |
| Current | 2000 (mA) |
| Power consumption | 50 (W) |
| Cables | CBLT007 included |
| Clamping system | 8x M4 threaded holes |
| Estimated mtbf | > 20000 (hours) |
| Optimal working distance | 10-100 (mm) |
| Illumination area length | 300 (mm) |
| Cooling method | passive |
| Lighting area (mm) | x 20 (mm) |
