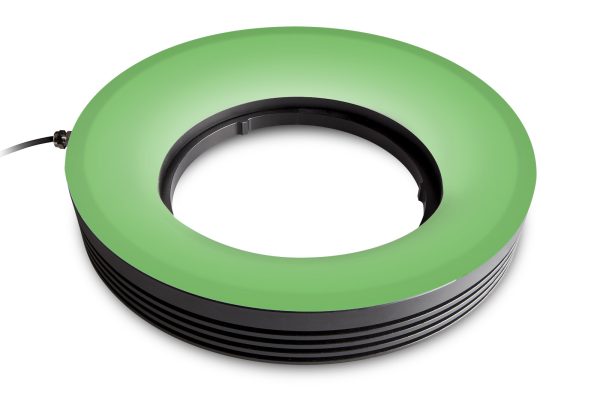

LTRN245G35

LTRN245G35

Specification Value
Illumination area outer diameter 225.0 (mm)
Illumination area inner diameter 160.0 (mm)
Emission angle 35 (deg)
Optimal working distance 20-80 (mm)
Number of LED rows 1
Light color, peak wavelength green, 525 nm
Illuminance at minimum working distance 6290 (lux)
Illuminance at maximum working distance 4880 (lux)
Supply voltage 24 (V)
Current 850 (mA)
Power consumption 20.4 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 2000 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 245.0 (mm)
Inner diameter 143.0 (mm)
Height 48.0 (mm)
Mass 1130 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Informacje dodatkowe

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

green, 525 nm
Accessory developer

Opto
Lux at max wd

4880 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

48.0 (mm)
Operating temperature

0-45 (°C)
Outer diameter

245.0 (mm)
Color

green, 525 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

850 (mA)
Mass

1130 (g)
Power consumption

20.4 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

225.0 (mm)
Illumination area (inner)

160.0 (mm)
Optimal working distance

20-80 (mm)
Number of led rows

1
Emission angle

35 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

143.0 (mm)
Lux at min wd

6290 (lux)
Max pulse current

2000 (mA)
Operation power source

850 (mA)
