Opis
- ± 15%.
- Tolerance ± 2%.
- At 25°C.
- Constant voltage power supply.
- Constant current power supply.

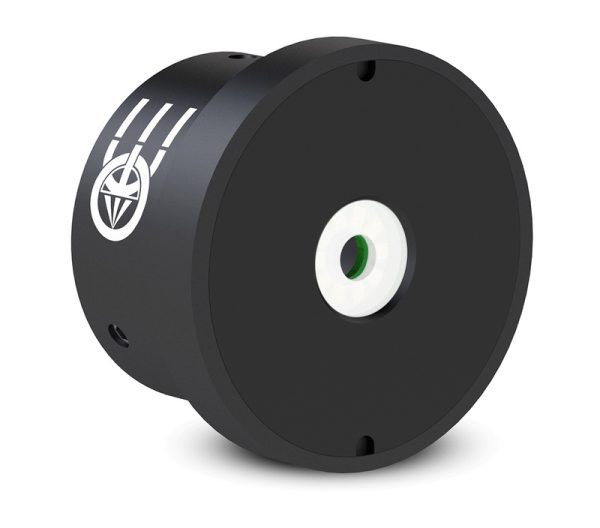

LTRNHCNW
| Specification | Value |
|---|---|
| Illumination area outer diameter | 10.0 (mm) |
| Illumination area inner diameter | 4.0 (mm) |
| Emission angle | 0 (deg) |
| Optimal working distance | 2-30 (mm) |
| Number of LED rows | 1 |
| Light color, peak wavelength | white, 6500 K |
| Illuminance at minimum working distance | 487000 (lux) |
| Illuminance at maximum working distance | 21500 (lux) |
| Supply voltage | 24 (V) |
| Current | 110 (mA) |
| Power consumption | 2.6 (W) |
| Estimated MTBF | – (hours) |
| Max pulse voltage | 16 (V) |
| Max pulse current | 2400 (mA) |
| Max duty-cycle | 1 (%) |
| Max pulse duration | 1 (ms) |
| Connector | Flying leads |
| Cable length | 450 (mm) |
| Outer diameter | 37.0 (mm) |
| Inner diameter | 4.0 (mm) |
| Height | 22.0 (mm) |
| Mass | 33 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Risk group 1 |
Informacje dodatkowe
| Cable length | 450 (mm) |
|---|---|
| Risk group (cei 62471) | Risk group 1 |
| Light color, peak wavelength | white, 6500 K |
| Accessory developer | Opto |
| Lux at max wd | 21500 (lux) |
| Connector | Flying leads |
| Supply voltage | 24 (V) |
| Height | 22.0 (mm) |
| Operating temperature | 0-45 (°C) |
| Outer diameter | 37.0 (mm) |
| Color | white, 6500 K |
| Operation power source | 110 (mA) |
| Operating relative humidity | 20-85, non condensing (%) |
| Current | 110 (mA) |
| Max duty cycle | 1 (%) |
| Mass | 33 (g) |
| Power consumption | 2.6 (W) |
| Max pulse duration | 1 (ms) |
| Estimated mtbf | |
| Illumination area (outer) | 10.0 (mm) |
| Illumination area (inner) | 4.0 (mm) |
| Optimal working distance | 2-30 (mm) |
| Number of led rows | 1 |
| Emission angle | 0 (deg) |
| Max pulse voltage | 16 (V) |
| Inner diameter | 4.0 (mm) |
| Lux at min wd | 487000 (lux) |
| Max pulse current | 2400 (mA) |
