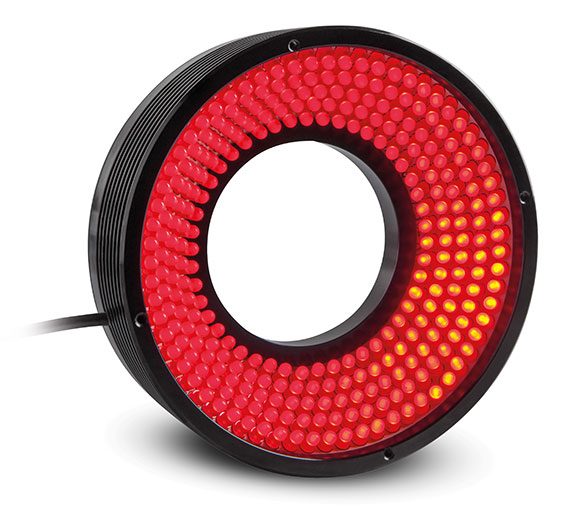

LTZGK100-45-5-R-24V

LTZGK100-45-5-R-24V

Specification Value
Illumination area outer diameter 95.0 (mm)
Illumination area inner diameter 48.0 (mm)
Optimal working distance 14-34 (mm)
Emission angle 45 (deg)
Number of LED rows 5
Light color, peak wavelength red, 630 nm
Illuminance 126100 (lux)
Supply voltage 24 (V)
Current 465 (mA)
Power consumption 11.2 (W)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 2380 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector JST SMR-03V
Cable length 500 (mm)
Outer diameter 100.0 (mm)
Inner diameter 48.0 (mm)
Height 30.0 (mm)
Mass 250 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  1. ± 15%. See datasheet for measurments distance.
  2. Tolerance ± 2%.
  3. Constant voltage power supply.
  4. Constant current power supply.

Informacje dodatkowe

Cable length

500 (mm)
Operating relative humidity

20-85, non condensing (%)
Light color, peak wavelength

red, 630 nm
Accessory developer

Opto
Inner diameter

48.0 (mm)
Connector

JST SMR-03V
Supply voltage

24 (V)
Height

30.0 (mm)
Operating temperature

0-45 (°C)
Outer diameter

100.0 (mm)
Color

red, 630 nm
Operation power source

465 (mA)
Risk group (cei 62471)

Exempt
Current

465 (mA)
Mass

250 (g)
Illuminance

126100 (lux)
Power consumption

11.2 (W)
Max duty cycle

10 (%)
Max pulse duration

10 (ms)
Illumination area (outer)

95.0 (mm)
Illumination area (inner)

48.0 (mm)
Optimal working distance

14-34 (mm)
Number of led rows

5
Emission angle

45 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Max pulse current

2380 (mA)
