Opis
- ± 15%. See datasheet for measurments distance
- Tolerance ± 2%
- Constant voltage power supply
- Constant current power supply

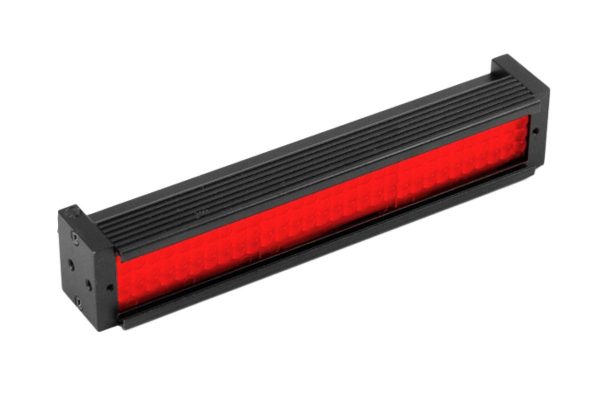

LTZPFL120-00-3-R-24V
| Specification | Value |
|---|---|
| Illumination area width | 120 (mm) |
| Illumination area height | 17.3 (mm) |
| Optimal working distance | 80-100 (mm) |
| Number of LED rows | 3 |
| Light color, peak wavelength | red, 630 nm |
| Illuminance | 5830 (lux) |
| Supply voltage | 24 (V) |
| Current | 99 (mA) |
| Power consumption | 2.4 (W) |
| Channels | 1 |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 550 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | JST SMR-03V |
| Cable length | 500 (mm) |
| Length | 132.0 (mm) |
| Width | 24.5 (mm) |
| Height | 22.0 (mm) |
| Mass | 95 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
Informacje dodatkowe
| Cable length | 500 (mm) |
|---|---|
| Operation power source | 99 (mA) |
| Max pulse current | 550 (mA) |
| Light color, peak wavelength | red, 630 nm |
| Accessory developer | Opto |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Length | 132.0 (mm) |
| Connector | JST SMR-03V |
| Supply voltage | 24 (V) |
| Height | 22.0 (mm) |
| Width | 24.5 (mm) |
| Operating temperature | 0-45 (°C) |
| Color | red, 630 nm |
| Operating relative humidity | 20-85, non condensing (%) |
| Mass | 95 (g) |
| Risk group (cei 62471) | Exempt |
| Illumination area height | 17.3 (mm) |
| Illuminance | 5830 (lux) |
| Current | 99 (mA) |
| Power consumption | 2.4 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Optimal working distance | 80-100 (mm) |
| Number of led rows | 3 |
| Channels | 1 |
| Illumination area width | 120 (mm) |
| Lighting area (mm) | 120 (mm) x 17.3 (mm) |
