Opis
- ± 15%. See datasheet for measurments distance
- Tolerance ± 2%.
- Constant voltage power supply.
- Constant current power supply.

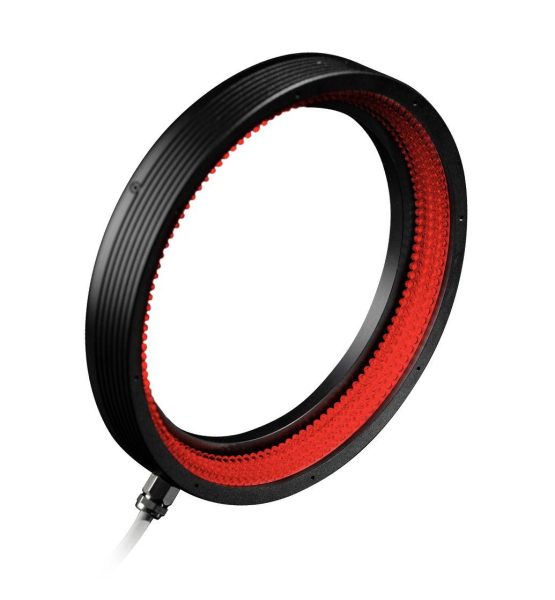

LTZZO170-75-3-R-24V-CH4
| Specification | Value |
|---|---|
| Illumination area outer diameter | 160 (mm) |
| Illumination area inner diameter | 136 (mm) |
| Optimal working distance | 6-16 (mm) |
| Number of LED rows | 3 |
| Emission angle | 75 (deg) |
| Light color, peak wavelength | red, 630 nm |
| Illuminance | 27200 (lux) |
| Supply voltage | 24 (V) |
| Current | 570 (mA) |
| Power consumption | 13.7 (W) |
| Channels | 4 |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 2920 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | 4x JST SMR-03V |
| Cable length | 500 (mm) |
| Outer diameter | 175 (mm) |
| Inner diameter | 136 (mm) |
| Height | 24.5 (mm) |
| Mass | 410 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
Informacje dodatkowe
| Cable length | 500 (mm) |
|---|---|
| Risk group (cei 62471) | Exempt |
| Light color, peak wavelength | red, 630 nm |
| Accessory developer | Opto |
| Inner diameter | 136 (mm) |
| Connector | 4x JST SMR-03V |
| Supply voltage | 24 (V) |
| Height | 24.5 (mm) |
| Operating temperature | 0-45 (°C) |
| Outer diameter | 175 (mm) |
| Color | red, 630 nm |
| Operation power source | 570 (mA) |
| Operating relative humidity | 20-85, non condensing (%) |
| Mass | 410 (g) |
| Current | 570 (mA) |
| Illuminance | 27200 (lux) |
| Power consumption | 13.7 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Illumination area (outer) | 160 (mm) |
| Illumination area (inner) | 136 (mm) |
| Optimal working distance | 6-16 (mm) |
| Number of led rows | 3 |
| Emission angle | 75 (deg) |
| Channels | 4 |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 2920 (mA) |
