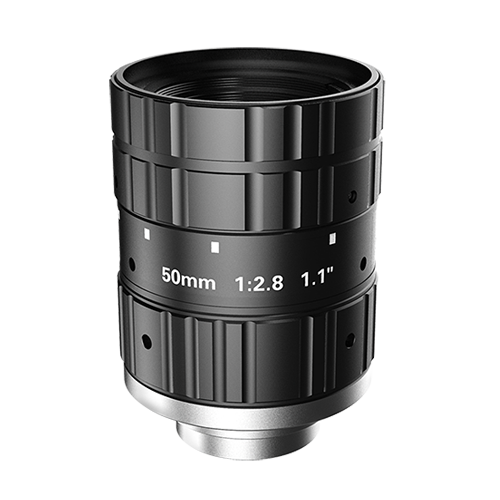

MH5028X

MH5028X

Series MH-X Series
Model MH5028X
Focal Length 50mm
Aperture F2.8 – F16
Image Sensor Size Ф17.6mm(1.1″)
Focus Range 0.3m to infinite
Optical Distortion -0.05%
TV Distortion -0.01%
Field of View 18.4°x14.8°x11.2°((17.6mmx14.08mmx10.56mm))
Relative Illumination 70% (F2.8); 81% (F4.0)
CRA（Chief Ray Angle) 7.1°
Spectral Range 436nm~656nm
Spectral Transmission T>85%
Camera Mount C Mount
Filter Thread M35.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 56.82mmxФ38.6mm
Net Weight 134 g
Operating Temperature -10°C to +50°C
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  • Support up to 1.1″ camera sensors
  • 5 models, focal length covering from 12mm to 50mm
  • High resolution for 12MP camera in full of view?consistent clarity at center and edge?
  • Low distorion?
  • Stable sharpness quality when temperature varies from -10?~50??

Dimensions

Downloads

Informacje dodatkowe

Field of view

18.4°x14.8°x11.2°((17.6mmx14.08mmx10.56mm))
Focus control

Manual
Cra (chief ray angle)

7.1°
