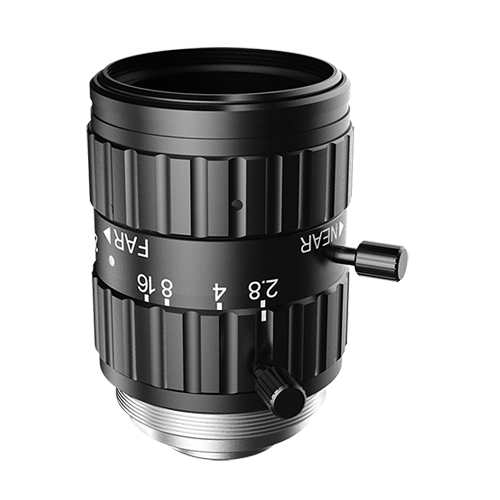

MK2528M

MK2528M

Series MK-M Series
Model MK2528M
Focal Length 25 mm
Aperture F2.8-F16
Image Sensor Size ?11.4 mm(2/3″)
Focus Range 0.15 m to infinite
Optical Distortion -0.3%
TV Distortion -0.3%
Field of View 24.8°x20.0°x15.0°(11 mmx8.5 mmx7.12 mm)
Relative Illumination 75% (F2.8); 95% (F4.0)
CRA?Chief Ray Angle) 9.8°
Spectral Range 400 nm~700 nm
Spectral Transmission T?85%
Camera Mount C-Mount
Filter Thread M25.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 36 mmx?30 mm
Net Weight 66 g
Operating Temperature -20°C ~ +50°C
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  • Support up to 2/3″ camera sensors
  • 5 models, focal length covering from 12mm to 50mm
  • Ultra high resolution, 10MP resolution in full view, matching up to 1.67?m pixel size?
  • Ultra low distortion?
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Informacje dodatkowe

Field of view

24.8°x20.0°x15.0°(11 mmx8.5 mmx7.12 mm)
Focus control

Manual
Cra (chief ray angle)

9.8°
