Opis
- Support up to 1.1″ camera sensors
- High reslution for 20MP camera in full view,matching 2.4?m pixel size
- Ultra low distortion, TV distortion less than 0.1%
- Stable sharpness quality when temperature varies from -20?~50?
Dimensions

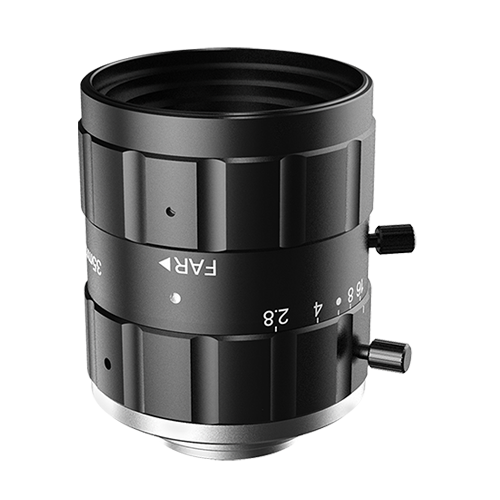

MT3528X
| Series | MT-X Series |
| Model | MT3528X |
| Focal Length | 35 mm |
| Aperture | F2.8 – 16 |
| Image Sensor Size | Ф17.6 mm(1.1″) |
| Focus Range | 0.2 m to infinite |
| Optical Distortion | -0.16% |
| TV Distortion | -0.07% |
| Field of View | 28.2°×22.9°×16.9°(17.6 mm×14.08 mm×10.56 mm) |
| Relative Illumination | 93% (F2.8); 92% (F4.0) |
| CRA（Chief Ray Angle) | 9.4° |
| Spectral Range | 436 nm～656 nm |
| Spectral Transmission | T＞85% |
| Camera Mount | C – Mount |
| Filter Thread | M35.5×P0.5 |
| Focus Control | Manual |
| Iris Control | Manual |
| Product Dimensions | 50 mm×Ф39 mm |
| Net Weight | 125 g |
| Operating Temperature | -10°C ～+50°C |
Informacje dodatkowe
| Field of view | 28.2°x22.9°x16.9°(17.6 mmx14.08 mmx10.56 mm) |
|---|---|
| Focus control | Manual |
| Cra (chief ray angle) | 9.4° |
