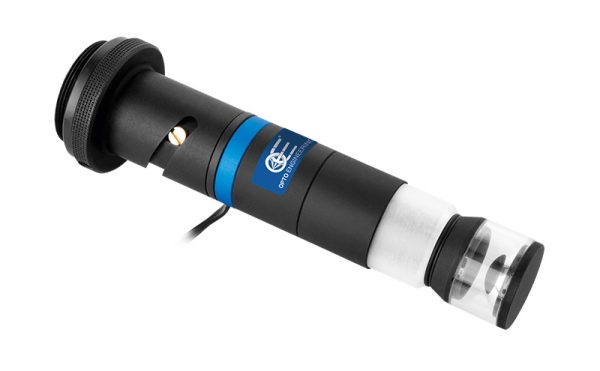

PCBP023

Specification	Value
Image circle diameter	7.0 (mm)
Min sensor size	2/3″
Minimum	25.0 x 11.0 (mm x mm)
Maximum	inf x inf (mm x mm)
Angle of view	60 (deg)
Working f/N	18
Focusing	Manual
Light color	white (nm)
Supply voltage	24 (V)
Current	40 (mA)
Power consumption	1.0 (W)
Typical pulse voltage	40 (V)
Max pulse current	100 (mA)
Peak power consumption	4 (W)
Max pulse duration	1 (ms)
Max duty-cycle	1.5 (%)
Liquid lens model	–
Temperature sensor	–
Focal power mode	–
Response time	– (ms)
Setting time	– (ms)
Current range	– (mA)
Lifecycles (10%-90% sinusoidal)	–
Connector	–
Mount	C
Phase adjustment	No
Total length	112.9 (mm)
Probe length	99.9 (mm)
Probe diameter	21 (mm)
Mass	76 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 1

Opis

Lens mount	C
Power consumption	1.0 (W)
Risk group (cei 62471)	Risk group 1
Operating relative humidity	20-85, non condensing (%)
Max pulse current	100 (mA)
Installation	Indoor use only
Storage temperature	0-50 (°C)
Operating temperature	0-40 (°C)
Current	40 (mA)
Supply voltage	24 (V)
Image circle diameter	7.0 (mm)
Mass	76 (g)
Phase adjustment	No
Probe diameter	21 (mm)
Accessory developer	Opto
Operation power source
Connector	–
Working f/N	18
Focusing	Manual
Typical pulse voltage	40 (V)
Probe length	99.9 (mm)
Total length	112.9 (mm)
Light color	white (nm)
Angle of view	60 (deg)
Maximum	inf x inf (mm x mm)
Minimum	25.0 x 11.0 (mm x mm)
Peak power consumption	4 (W)
Min sensor size	2/3"
Lifecycle (1090% sin)	–
Focal power mode	–
Temperature sensor	–
Liquid lens model	–
Max pulse duration	1 (ms)
Max duty cycle	1.5 (%)
