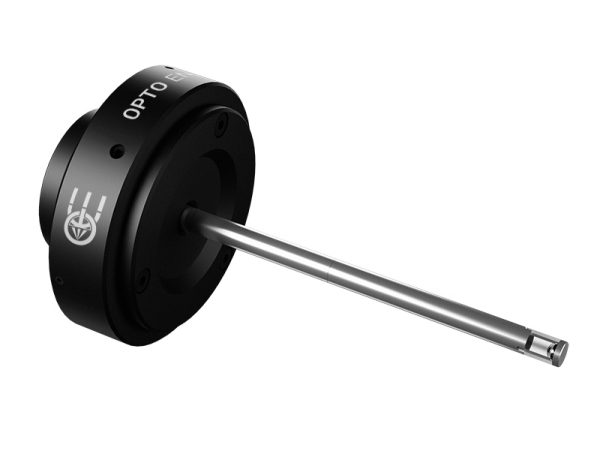

PCBPN013

Specification Value
Image circle diameter 3.4 (mm)
Min sensor size 1/3″
Minimum 5.5 x 2.8 (mm x mm)
Maximum 25.0 x 15.0 (mm x mm)
Angle of view 65 (deg)
Working f/N 30
Focusing Manual
Light color – (nm)
Supply voltage – (V)
Current – (mA)
Power consumption – (W)
Typical pulse voltage – (V)
Max pulse current – (mA)
Peak power consumption – (W)
Max pulse duration – (ms)
Max duty-cycle – (%)
Liquid lens model
Temperature sensor
Focal power mode
Response time – (ms)
Setting time – (ms)
Current range – (mA)
Lifecycles (10%-90% sinusoidal)
Connector
Mount C
Phase adjustment No
Total length 81.1 (mm)
Probe length 66.8 (mm)
Probe diameter 4 (mm)
Mass 80 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010
Kategoria: Tag: Marka:

Opis

  1. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  2. Tolerance ± 2%
  3. Used in continuous (non-pulsed) mode.
  4. Constant voltage power supply
  5. Constant current power supply
  6. Measured from the front end of the mechanics to the camera flange.

Informacje dodatkowe

Lens mount

C

Current
Operation power source
Accessory developer

Opto

Probe diameter

4 (mm)

Phase adjustment

No

Mass

80 (g)

Image circle diameter

3.4 (mm)

Connector

Supply voltage
Operating temperature

0-40 (°C)

Storage temperature

0-50 (°C)

Installation

Indoor use only

Max pulse current
Operating relative humidity

20-85, non condensing (%)

Risk group (cei 62471)

Working f/N

30

Typical pulse voltage
Power consumption
Max duty cycle

– (%)

Liquid lens model

Temperature sensor

Focal power mode

Lifecycle (1090% sin)

Focusing

Manual

Min sensor size

1/3"

Minimum

5.5 x 2.8 (mm x mm)

Maximum

25.0 x 15.0 (mm x mm)

Angle of view

65 (deg)

Total length

81.1 (mm)

Probe length

66.8 (mm)

Color
