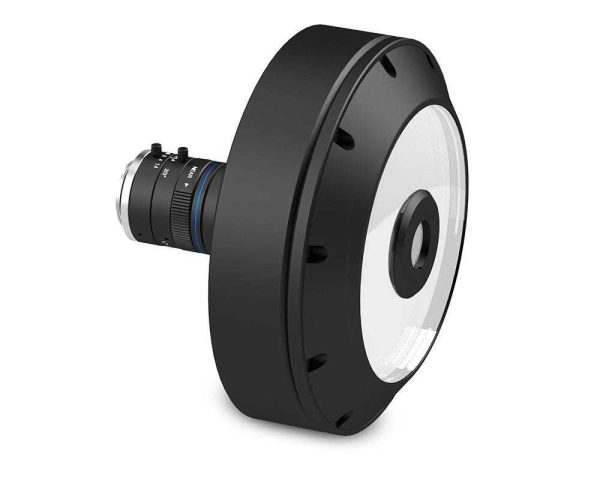

PCCD012

PCCD012

Specification Value
Image circle diameter 4.8 (mm)
Min sensor size 1/2″
Minimum 7.5 x 4.2 (mm x mm)
Medium 35.0 x 24.2 (mm x mm)
Maximum 75.0 x 2.5 (mm x mm)
Working distance with minimum object 50.5 (mm)
Working distance with medium object 9.2 (mm)
Working distance with maximum object 0.0 (mm)
Angle of view 35 (deg)
f/N 1.4 – C
Mount C
Diameter 143.0 (mm)
Length 108.0 (mm)
Mass 988 (g)
Dodaj do ofert
Kategoria: Tag: Marka:

Opis

  1. For the complete information about the inspectable field of view, see the datasheet of the objective
  2. The maximum inspectable field of view is given considering zero working distance. Depending on the application, a working distance greater than zero will decrease the height of the inspectable object accordingly.
  3. Working distance: distance between the front end of the mechanics and the object.
  4. The f-number could be changed using the variable iris.
  5. Measured from the front end of the mechanics to the camera flange.

Informacje dodatkowe

Lens mount

C
Wd (max object)

0.0 (mm)
Operation power source
Accessory developer

Opto
Wd (med object)

9.2 (mm)
Medium

35.0 x 24.2 (mm x mm)
Diameter

143.0 (mm)
Angle of view

35 (deg)
Wd (min object)

50.5 (mm)
Mass

988 (g)
Maximum

75.0 x 2.5 (mm x mm)
Minimum

7.5 x 4.2 (mm x mm)
Min sensor size

1/2"
F/n

1.4 – C
Length

108.0 (mm)
Image circle diameter

4.8 (mm)
Color
