Opis
- Working distance: distance between the front end of the mechanics and the object.
- Measured from the front end of the mechanics to the camera flange.

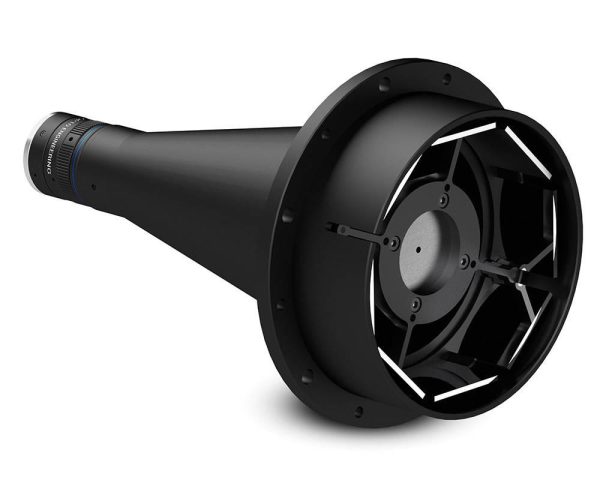

PCPW013
| Specification | Value |
|---|---|
| Image circle diameter | 3.6 (mm) |
| Min sensor size | 1/3'' |
| Minimum | 30.0 x 20.0 (mm x mm) |
| Maximum | 50.0 x 5.0 (mm x mm) |
| Working distance with minimum object | 40.0 (mm) |
| Working distance with maximum object | 20.0 (mm) |
| Angle of view | 45 (deg) |
| f/N | 1.4 – close |
| Mount | C |
| Length | 232.3 (mm) |
| Front diameter | 117.0 (mm) |
| Mass | 902 (g) |
Informacje dodatkowe
| Lens mount | C |
|---|---|
| Mass | 902 (g) |
| Image circle diameter | 3.6 (mm) |
| Length | 232.3 (mm) |
| Front diameter | 117.0 (mm) |
| F/n | 1.4 – close |
| Min sensor size | 1/3'' |
| Minimum | 30.0 x 20.0 (mm x mm) |
| Maximum | 50.0 x 5.0 (mm x mm) |
| Wd (min object) | 40.0 (mm) |
| Wd (max object) | 20.0 (mm) |
| Angle of view | 45 (deg) |
| Accessory developer | Opto |
| Color | |
| Operation power source |
