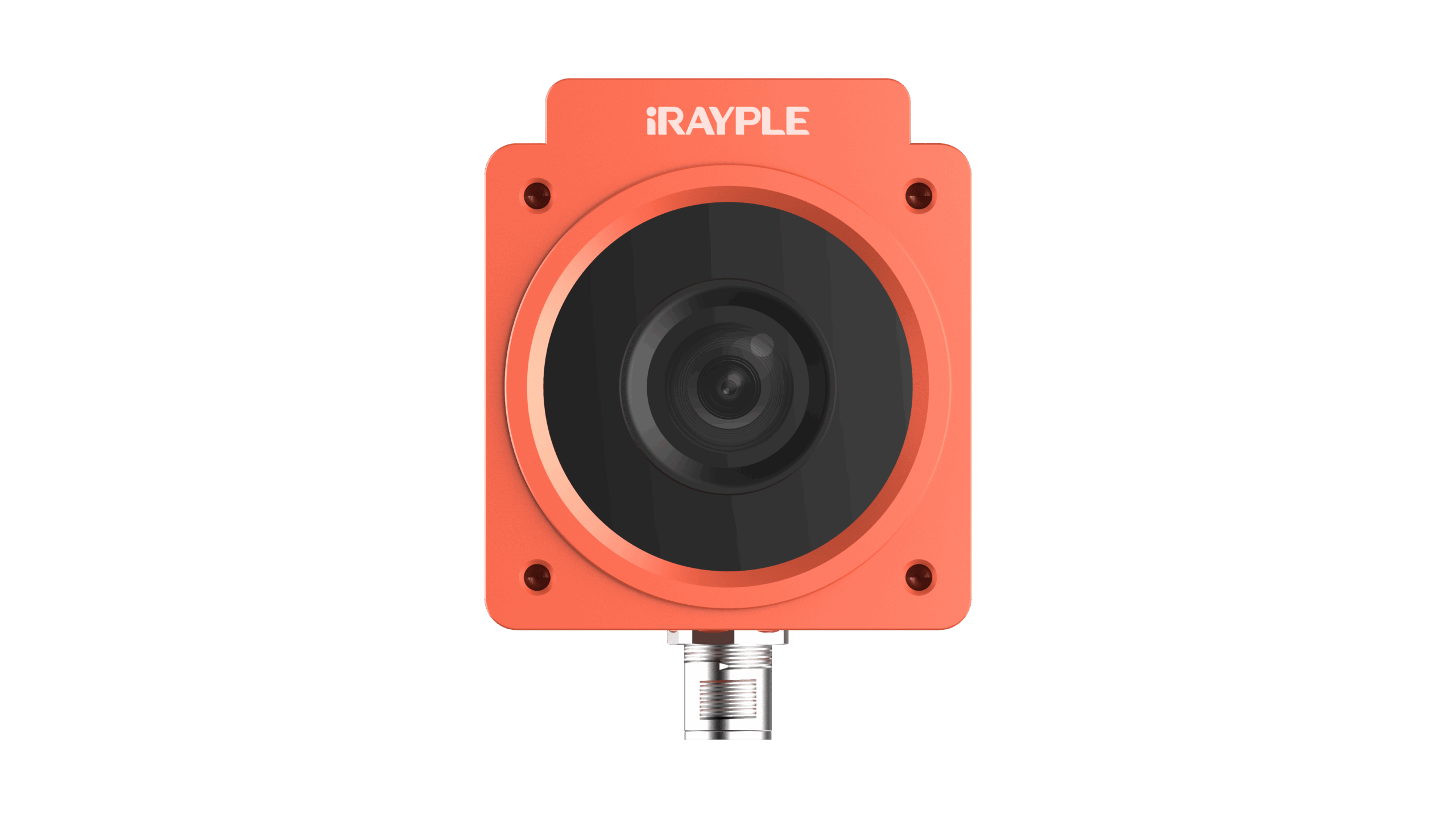

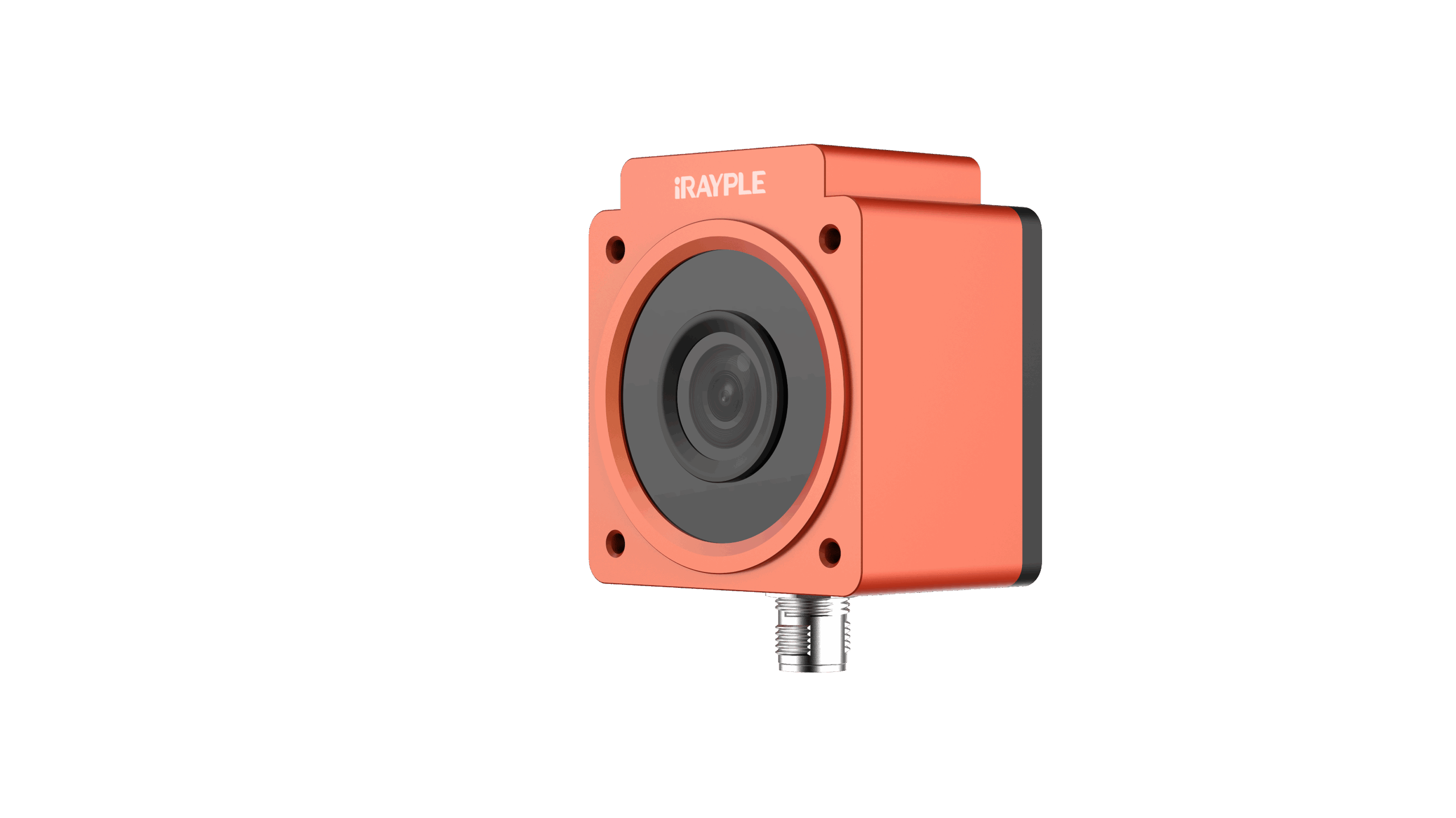

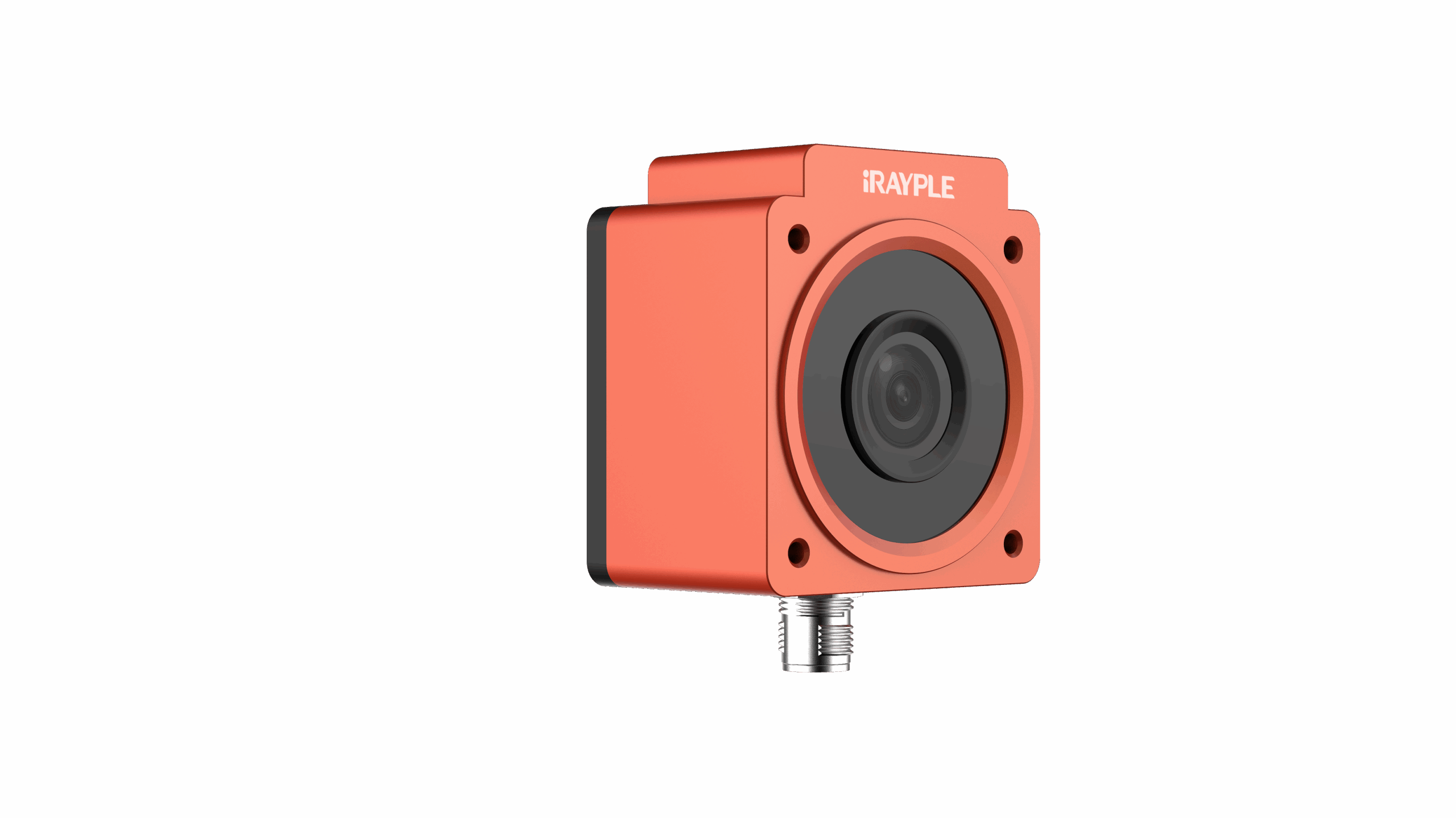

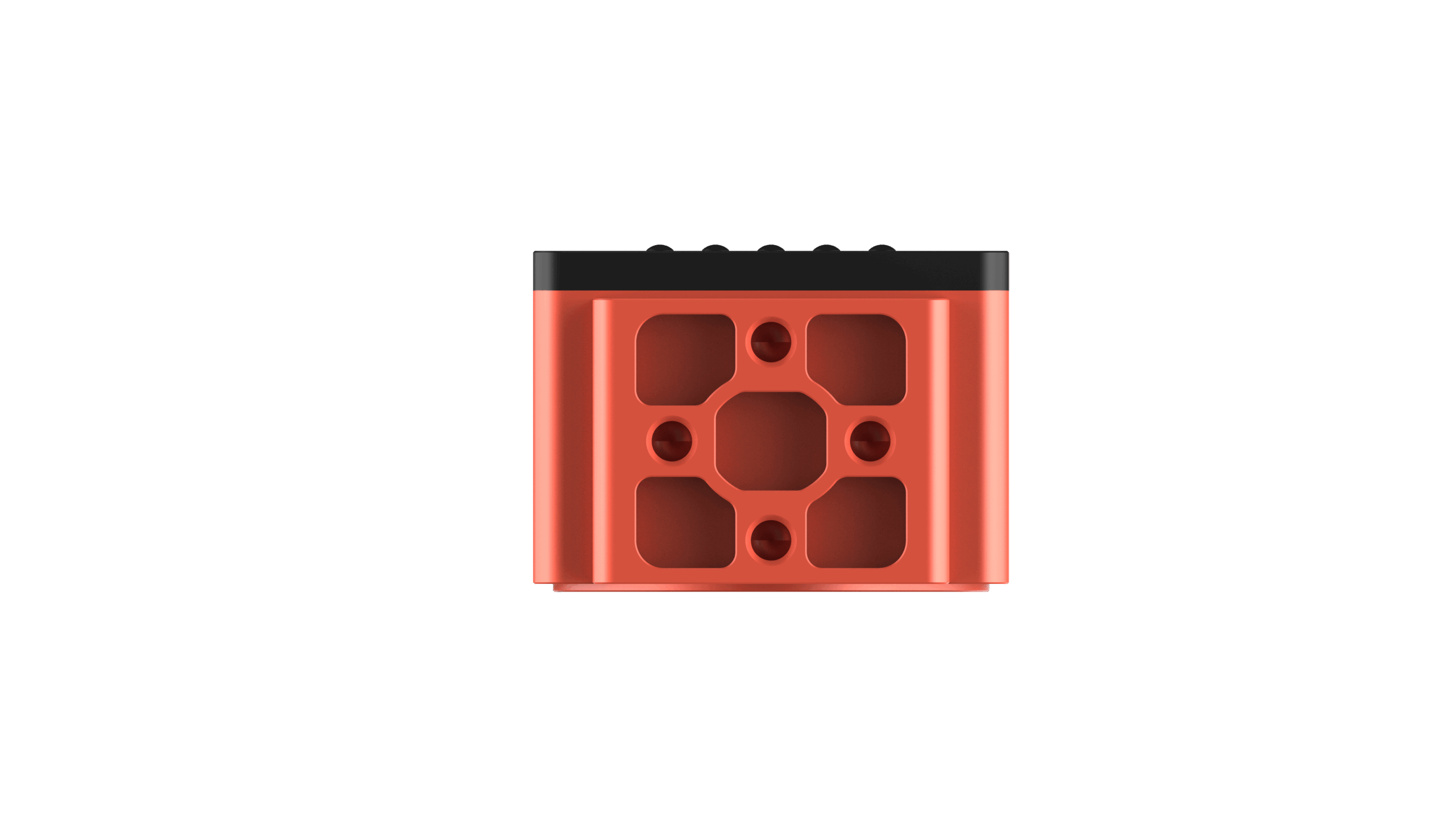

R3138MG010E

Max. Frame rate 120 fps
Shutter Mode Global
Mono/Color Mono
Lens Mount M12
Trigger Mode Single Frame trigger/Software trigger/Free run mode
Software SVStudio
Certifications CE?FCC?KC
Function DM-12&DM-14?DM4x4
Focal Length 3.37 mm
Working Distance 100 mm
Field of View (FOV) 110 mm x 93 mm
Max. Read Speed 125 code/s
Max. Operating Speed 3 m/s
Focus Control Stationarytype
Light Source Type WhiteLed
Depth of Field (DoF) +/-20mm
Angular Accuracy 0.1°
Displacement Accuracy 0.1mm
Connector 1eaM12connector
Network Port 100M Ethernet
GPIO Interface 1 opto-isolated input?1 opto-isolated output
Communication Mode 100MEthernet?RS485
Communication protocol SDK?Serial?TCPServer?TCPClient
LED Indicator 5LEDindicator?SYS?NET?Triggerand2user-definedLED
Power Supply DC24V+/-10%
Power Consumption Disableillumination:<3.5W@24VDC Enableillumination:<7.5w@24VDC
Product Dimensions 60mmx60mmx43mm(Excludedinterfaceport)
Packaging Dimensions 164 mm x 122 mm x 91 mm
Net Weight <225 g
Gross Weight <350 g
Protection IP65
Casing Material aluminum alloy
Operating Temperature -20??+50?
Operating Humidity 20%?95%?No condensation
Storage Temperature -30??+80?
Kategoria: Znacznik: Marka:

Opis

  • High performance decode algorithm, can be applied when DM code is under condition of dirty/defect/low contrast during operation.
  • Embedded decode algorithm. High speed/accuracy.
  • Support DM-12&DM-14 and DM code array.
  • Embedded aviation plug, abundant IO interfaces.

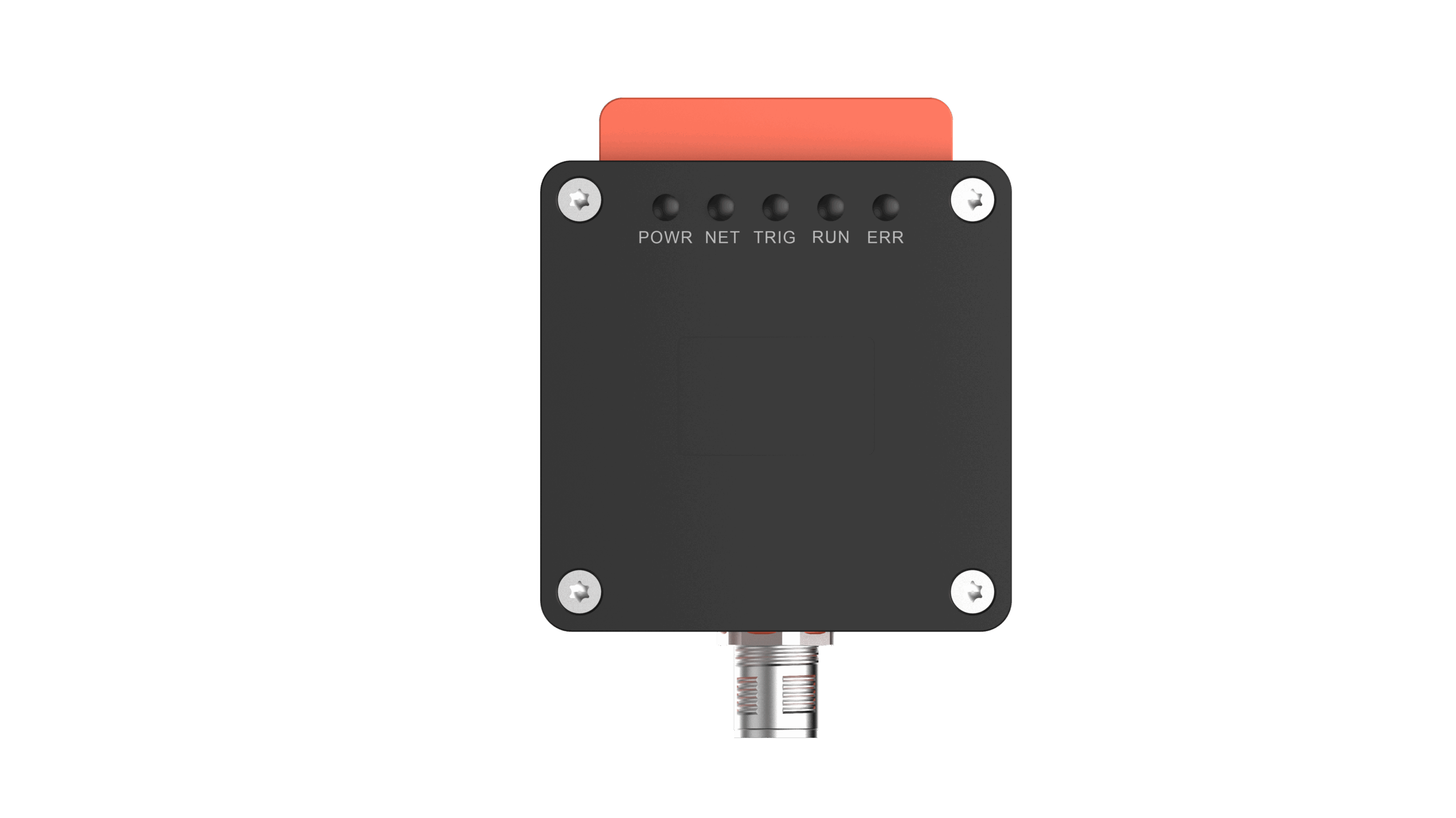

  • 5-way indicator for debug and camera status monitoring.
  • Support multiple userSet parameter save/load/switch.
  • Apply M12 FA lens, supports locating DM code in large FOV.

Dimensions

Downloads

AGV_Code_Reader_user_s_Manual_V1.0.7.pdf

Informacje dodatkowe

Connector

1eaM12connector

Field of view

110 mm x 93 mm

Focus control

Stationarytype

Gpio interface

1 opto-isolated input,1 opto-isolated output

Lens mount

M12

Power consumption

Disableillumination:<3.5W@24VDC Enableillumination:<7.5w@24VDC

Power supply

DC24V+/-10%

Storage temperature

-30℃~+80℃

Trigger mode

Single Frame trigger/Software trigger/Free run mode

Working distance

100 mm

Mono-color

Mono

Max. frame rate

120 fps

Shutter mode

Global

Software

SVStudio

Certifications

CE,FCC,KC

Function

DM-12&DM-14,DM4x4

Light source type

WhiteLed

Max. read speed

125 code/s

Max. operating speed

3 m/s

Network port

100M Ethernet

Communication mode

100MEthernet、RS485

Communication protocol

SDK,Serial,TCPServer,TCPClient

Led indicator

5LEDindicator,SYS、NET、Triggerand2user-definedLED

Protection

IP65

Casing material

aluminum alloy

Operating humidity

20%~95%,No condensation

Depth of field (dof)

+/-20mm

Packaging dimensions

164 mm x 122 mm x 91 mm

Gross weight

<350 g

Angular accuracy

0.1°

Displacement accuracy

0.1mm
