Opis
- Working distance: distance between the front end of the mechanics and the object.
- Percent deviation of the real image compared to an ideal, undistorted image.
- Measured from the front end of the mechanics to the camera flange at infinity focus.

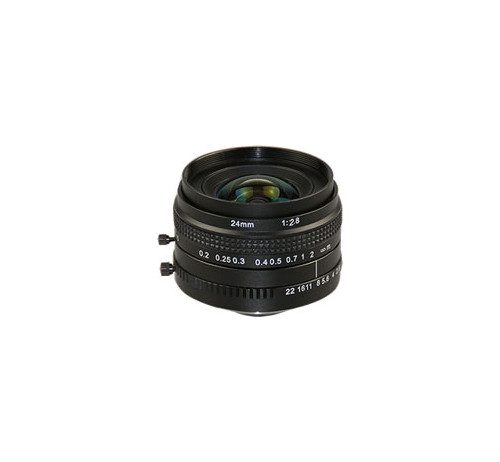

RT-A-2428MF
| Specification | Value |
|---|---|
| Focal length | 25 (mm) |
| Image circle diameter | 43 (mm) |
| Max sensor size | 35 mm Full Frame |
| Full Frame | 84.0 (deg) |
| Working distance range | 0.5 – inf (m) |
| f/N | 2.8 – 22 |
| Back focal length | 36.0 (mm) |
| Distortion | 4.2 (%) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | F |
| Filter thread | M52 x 0.75 |
| Outer diameter | 60.0 (mm) |
| Length | 40.2 (mm) |
| Mass | 230 (g) |
Informacje dodatkowe
| Lens mount | F |
|---|---|
| F/n | 2.8 – 22 |
| Operation power source | |
| Accessory developer | Opto |
| Outer diameter | 60.0 (mm) |
| Filter thread | M52 x 0.75 |
| Focus control | Manual |
| Iris control | Manual |
| Back focal length | 36.0 (mm) |
| Focal length | 25 (mm) |
| Working distance range | 0.5 – inf (m) |
| Full frame | 84.0 (deg) |
| Distortion | 4.2 (%) |
| Length | 40.2 (mm) |
| Image circle diameter | 43 (mm) |
| Mass | 230 (g) |
| Color | |
| Focal length (mm) | 25 (mm) |
| Sensor size |
