Opis
- Working distance: distance between the front end of the mechanics and the object.
- Measured from the front end of the mechanics to the camera flange at infinite focusing.

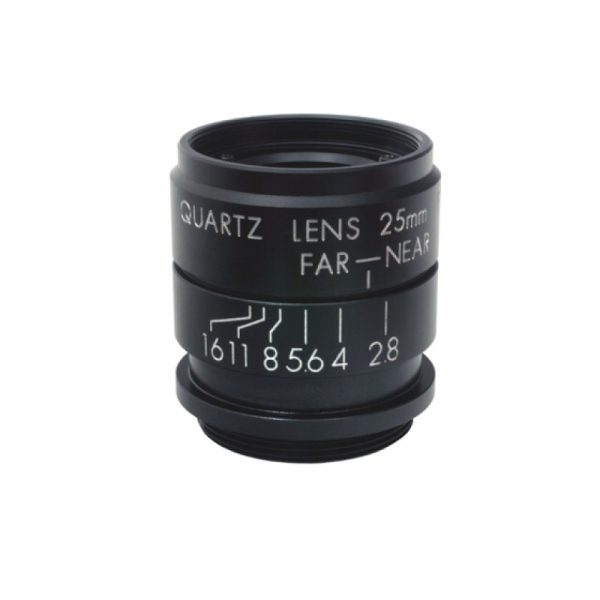

RT-FL-BC2528-VGUV
| Specification | Value |
|---|---|
| Focal length | 25 (mm) |
| Image circle diameter | 16.0 (mm) |
| Max sensor size | 1″ |
| 1/2″ | 14.8 (deg) |
| 2/3″ | 20.4 (deg) |
| 1″ | 29.7 (deg) |
| Working distance range | 0.23 – inf (m) |
| Wavelength range | 230-800 (nm) |
| f/N | 2.8 – 16 |
| Back focal length | 22.1 (mm) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C |
| Filter thread | M25.5 x 0.5 |
| Outer diameter | 30.0 (mm) |
| Length | 25.4 (mm) |
| Mass | 33 (g) |
Informacje dodatkowe
| Lens mount | C |
|---|---|
| Focal length | 25 (mm) |
| Operation power source | |
| Accessory developer | Opto |
| Outer diameter | 30.0 (mm) |
| Filter thread | M25.5 x 0.5 |
| Focus control | Manual |
| Iris control | Manual |
| Back focal length | 22.1 (mm) |
| F/n | 2.8 – 16 |
| Working distance range | 0.23 – inf (m) |
| Wavelength range | 230-800 (nm) |
| Length | 25.4 (mm) |
| Image circle diameter | 16.0 (mm) |
| Mass | 33 (g) |
| 2 3 | 20.4 (deg) |
| 1 2 | 14.8 (deg) |
| Color | |
| Focal length (mm) | 25 (mm) |
| Sensor size |
