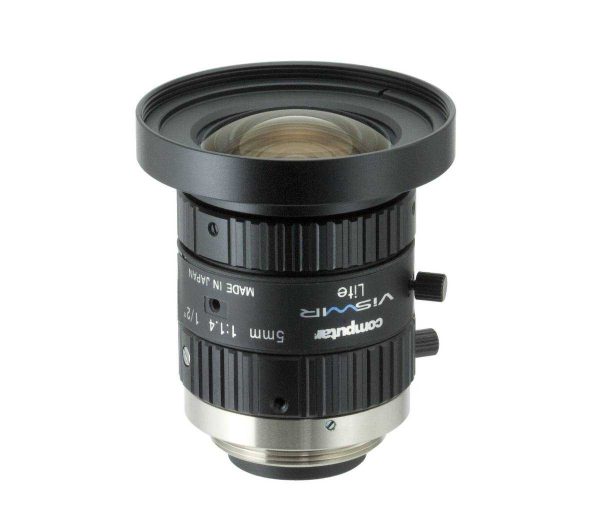

RT-H0514-VSW

RT-H0514-VSW

Specification Value
Focal length 5 (mm)
Image circle diameter 8.2 (mm)
Max sensor size 1/2″
1/2″ – IMX990 77.8 (deg)
2/3″ – (deg)
Working distance range 0.1 – 0.9 (m)
Wavelength range 400-1700 (nm)
f/N 1.4 – closed
Back focal length 10.8 (mm)
Distortion on 1/2″ 0.48 (%)
Distortion on 2/3″ – (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M43 x 0.75
Outer diameter 44.5 (mm)
Length 45.5 (mm)
Mass 102 (g)
Dodaj do ofert
Kategoria: Tag: Marka:

Opis

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. High transmittance across the wavelength range due to broadband AR coating. Designed for imaging with single wavelength narrowband illumination.
  4. Percent deviation of the real image compared to an ideal, undistorted image.
  5. Measured from the front end of the mechanics to the camera flange at infinity focus.

Informacje dodatkowe

Lens mount

C
Working distance range

0.1 – 0.9 (m)
Operation power source
Accessory developer

Opto
1 2 imx990

77.8 (deg)
Mass

102 (g)
Image circle diameter

8.2 (mm)
Length

45.5 (mm)
Wavelength range

400-1700 (nm)
Focal length

5 (mm)
F/n

1.4 – closed
Back focal length

10.8 (mm)
Distortion on 1 2

0.48 (%)
Distortion on 2 3

– (%)
Iris control

Manual
Focus control

Manual
Filter thread

M43 x 0.75
Outer diameter

44.5 (mm)
Color
Focal length (mm)

5 (mm)
Sensor size
