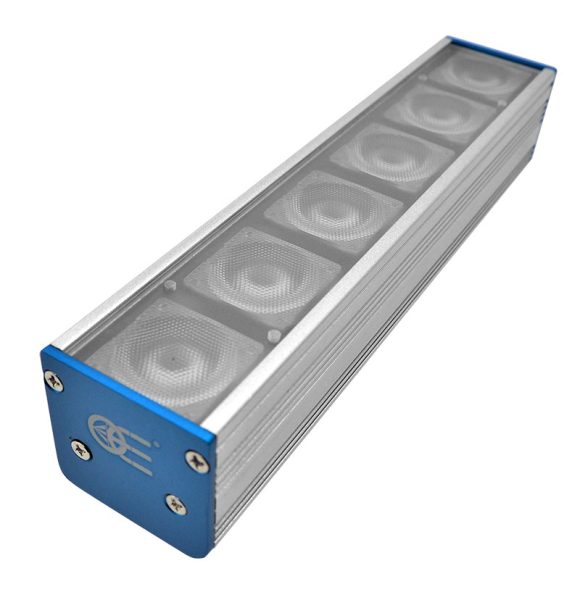

RT-HBL3-160-1-R-24V

RT-HBL3-160-1-R-24V

Specification Value
Illumination area width 156 (mm)
Illumination area height 26.4 (mm)
Optimal working distance 300-400 (mm)
Number of LEDs 6
Light color, peak wavelength red, 630 nm
Illuminance 3065 (lux)
Supply voltage 24 (V)
Current 160 (mA)
Power consumption 3.8 (W)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 480 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Input connector M12, 5 pins, male
Output connector M12, 5 pins, female
Cables 3 m extension cable, M12 5 pin female to flying leads
Length 160.0 (mm)
Width 33.4 (mm)
Height 32.5 (mm)
Mass 270 (g)
Operating temperature 0-60 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Dodaj do ofert
Kategoria: Znacznik: Marka:

Opis

  1. ± 15% at minimum working distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Informacje dodatkowe

Mass

270 (g)
Risk group (cei 62471)

Exempt
Max pulse current

480 (mA)
Light color, peak wavelength

red, 630 nm
Accessory developer

Opto
Output connector

M12, 5 pins, female
Supply voltage

24 (V)
Height

32.5 (mm)
Width

33.4 (mm)
Operating temperature

0-60 (°C)
Color

red, 630 nm
Operation power source

160 (mA)
Operating relative humidity

20-85, non condensing (%)
Illumination area width

156 (mm)
Number of leds

6
Length

160.0 (mm)
Illumination area height

26.4 (mm)
Illuminance

3065 (lux)
Current

160 (mA)
Power consumption

3.8 (W)
Max duty cycle

10 (%)
Max pulse duration

10 (ms)
Cables

3 m extension cable, M12 5 pin female to flying leads
Optimal working distance

300-400 (mm)
Max pulse voltage

24-48 (36 recomended) (V)
Input connector

M12, 5 pins, male
Lighting area (mm)

156 (mm) x 26.4 (mm)
