Opis
- ± 15% at minimum working distance
- Tolerance ± 2%
- Constant voltage power supply
- Constant current power supply

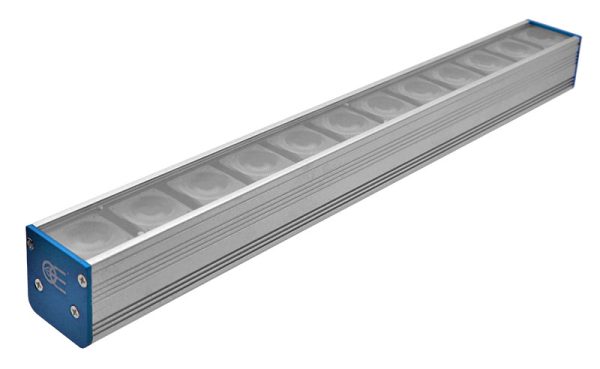

RT-HBL3-320-1-UV365-24V
| Specification | Value |
|---|---|
| Illumination area width | 316 (mm) |
| Illumination area height | 26.4 (mm) |
| Optimal working distance | 400-500 (mm) |
| Number of LEDs | 12 |
| Light color, peak wavelength | UV, 365 nm |
| Illuminance | – (lux) |
| Supply voltage | 24 (V) |
| Current | 480 (mA) |
| Power consumption | 11.5 (W) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 3884 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Input connector | M12, 5 pins, male |
| Output connector | M12, 5 pins, female |
| Cables | 3 m extension cable, M12 5 pin female to flying leads |
| Length | 320.0 (mm) |
| Width | 33.4 (mm) |
| Height | 32.5 (mm) |
| Mass | 500 (g) |
| Operating temperature | 0-60 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Risk group 2 |
Informacje dodatkowe
| Mass | 500 (g) |
|---|---|
| Risk group (cei 62471) | Risk group 2 |
| Max pulse current | 3884 (mA) |
| Light color, peak wavelength | UV, 365 nm |
| Accessory developer | Opto |
| Output connector | M12, 5 pins, female |
| Supply voltage | 24 (V) |
| Height | 32.5 (mm) |
| Width | 33.4 (mm) |
| Operating temperature | 0-60 (°C) |
| Color | UV, 365 nm |
| Operation power source | 480 (mA) |
| Operating relative humidity | 20-85, non condensing (%) |
| Illumination area width | 316 (mm) |
| Number of leds | 12 |
| Length | 320.0 (mm) |
| Illumination area height | 26.4 (mm) |
| Illuminance | |
| Current | 480 (mA) |
| Power consumption | 11.5 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Cables | 3 m extension cable, M12 5 pin female to flying leads |
| Optimal working distance | 400-500 (mm) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Input connector | M12, 5 pins, male |
| Lighting area (mm) | 316 (mm) x 26.4 (mm) |
