Opis
- Working distance: distance between the front end of the mechanics and the object.
- Percent deviation of the real image compared to an ideal, undistorted image.
- Measured from the front end of the mechanics to the camera flange

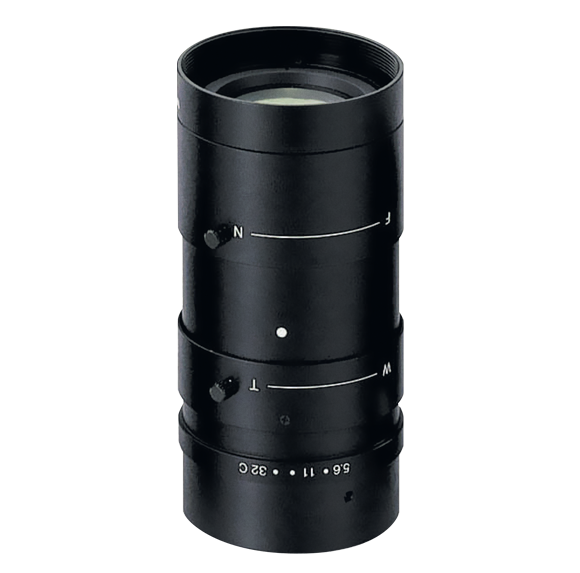

RT-MLH-10X-C
| Specification | Value |
|---|---|
| Focal length | – – (mm) |
| Magnification | 0.084 0.840 (x) |
| Image circle diameter | 8 8 (mm) |
| Max sensor size | 1/2″ 1/2″ |
| 1/2″ | 21.6 4.5 (deg) |
| 2/3″ | – – (deg) |
| 1/2″ | 76.19 x 57.14 7.62 x 5.71 |
| 2/3″ | – – |
| Working distance range | 150 – 450 150 – 450 (mm) |
| f/N | 5.6 – 32 5.6 – 32 |
| Back focal length | 23.29 23.29 (mm) |
| Distortion on 1/2″ | 0.9 1.6 (%) |
| Distortion on 2/3″ | – – (%) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C |
| Filter thread | M46 x 0.75 |
| Outer diameter | 48 (mm) |
| Length | 98.5 (mm) |
| Mass | 260 (g) |
Informacje dodatkowe
| Lens mount | C |
|---|---|
| Distortion on 1 2 | 0.9 1.6 (%) |
| Operation power source | |
| Accessory developer | Opto |
| Outer diameter | 48 (mm) |
| Filter thread | M46 x 0.75 |
| Focus control | Manual |
| Iris control | Manual |
| Distortion on 2 3 | – – (%) |
| Back focal length | 23.29 23.29 (mm) |
| Zoom ratio | 0.084 0.840 (x) |
| F/n | 5.6 – 32 5.6 – 32 |
| Working distance range | 150 – 450 150 – 450 (mm) |
| Length | 98.5 (mm) |
| Image circle diameter | 8 8 (mm) |
| Mass | 260 (g) |
| Color | |
| Optmag | 0.084 0.840 (x) |
| Sensor size |
