Opis
- Working distance: distance between the front end of the mechanics and the object.
- Percent deviation of the real image compared to an ideal, undistorted image.
- Measured from the front end of the mechanics to the camera flange

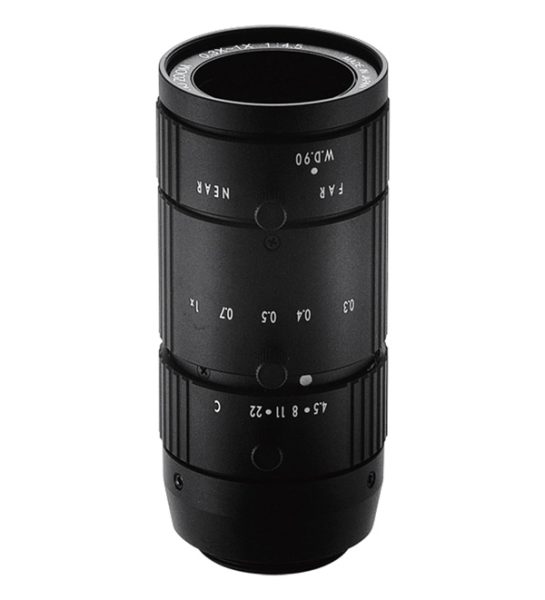

RT-MLM-3XMP
| Specification | Value |
|---|---|
| Focal length | – – (mm) |
| Magnification | 0.300 1.000 (x) |
| Image circle diameter | 11 11 (mm) |
| Max sensor size | 2/3″ 2/3″ |
| 1/2″ | 10.7 2.72 (deg) |
| 2/3″ | 14.88 2.84 (deg) |
| 1/2″ | 21.33 x 16.00 6.40 x 4.80 |
| 2/3″ | 28.33 x 23.63 8.50 x 7.09 |
| Working distance range | 90 90 (mm) |
| f/N | 4.5 – 22 4.5 – 22 |
| Back focal length | 20.4 20.4 (mm) |
| Distortion on 1/2″ | 0.02 0.77 (%) |
| Distortion on 2/3″ | 0.12 1.78 (%) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C |
| Filter thread | M34 x 0.5 |
| Outer diameter | 36 (mm) |
| Length | 79.5 (mm) |
| Mass | 150 (g) |
Informacje dodatkowe
| Lens mount | C |
|---|---|
| Distortion on 1 2 | 0.02 0.77 (%) |
| Operation power source | |
| Accessory developer | Opto |
| Outer diameter | 36 (mm) |
| Filter thread | M34 x 0.5 |
| Focus control | Manual |
| Iris control | Manual |
| Distortion on 2 3 | 0.12 1.78 (%) |
| Back focal length | 20.4 20.4 (mm) |
| Zoom ratio | 0.300 1.000 (x) |
| F/n | 4.5 – 22 4.5 – 22 |
| Working distance range | 90 90 (mm) |
| Length | 79.5 (mm) |
| Image circle diameter | 11 11 (mm) |
| Mass | 150 (g) |
| Color | |
| Optmag | 0.300 1.000 (x) |
| Sensor size |
