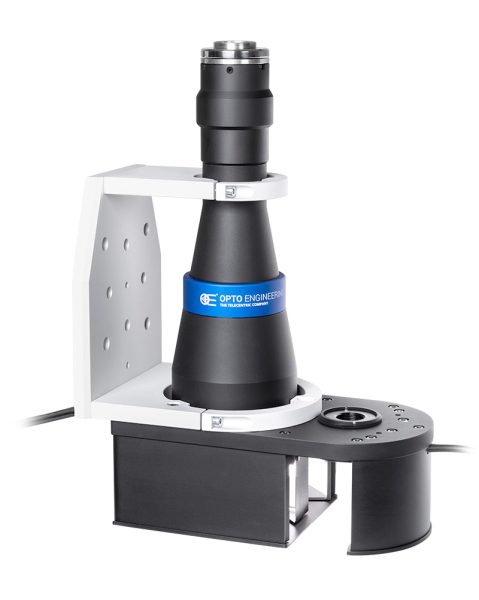

TCCAGE2MHR048HP-C

Specification	Value
Magnification	0.267 (x)
Sensor size	14.2 x 7.5 (mm x mm)
Min sensor size	1″
Maximum	8.0 x 28.1 (mm x mm)
Working f/N	16
Depth of field	11.60 (mm)
Light color, peak wavelength	white, 6500K
Power supply mode	Strobe only, constant current driving
Supply voltage	– (V)
Max continuous current	– (mA)
Typical pulse voltage	30 (V)
Max pulse current	6 (A)
Peak power consumption	180.0 (W)
Max duty-cycle	1 (%)
Max pulse duration	1 (ms)
Estimated MTBF	50000 (hours)
Cable length	0.3 (m)
Connector	M8
Cables	CBLT003 included
Light color, peak wavelength	white, 6500K
Power supply mode	Strobe only, constant current driving
Supply voltage	– (V)
Max continuous current	– (mA)
Typical pulse voltage	20 (V)
Max pulse current	2 (A)
Peak power consumption	40 (W)
Max duty-cycle	2 (%)
Max pulse duration	1 (ms)
Estimated MTBF	50000 (hours)
Cable length	0.3 (m)
Connector	M8
Cables	CBLT003 included
Mount	C
Phase adjustment	Yes
Length	200.8 (mm)
Width	111.0 (mm)
Height	281.0 (mm)
Mass	2139 (g)
Operating temperature	0-40 (°C)
Operating relative humidity	20 – 85, non-condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Exempt

Kategoria: Telecentric Znacznik: Opto Marka: Opto

Opis

Recommended sensor. Different sensor sizes may generate incomplete images.
Maximum sample diameter in each of the four views and maximum sample height with the recommended sensor.
Working f-number (wf/N): the real f-number of a lens in operating conditions. Lenses with reduced aperture can be supplied on request.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Tolerance ± 2%.
Drop to 50% intensity @ 25°C.
Indicates the availability of an integrated camera phase adjustment feature.

Cable length	0.3 (m)
Width	111.0 (mm)
Optmag	0.267 (x)
Accessory developer	Opto
Maximum	8.0 x 28.1 (mm x mm)
Sensor size	14.2 x 7.5 (mm x mm)
Zoom ratio	0.267 (x)
Working f/N	16
Depth of field	11.60 (mm)
Phase adjustment	Yes
Mass	2139 (g)
Length	200.8 (mm)
Connector	M8
Height	281.0 (mm)
Lens mount	C
Installation	Indoor use only
Operating temperature	0-40 (°C)
Light color, peak wavelength	white, 6500K
Max pulse current	2 (A)
Operating relative humidity	20 – 85, non-condensing (%)
Risk group (cei 62471)	Exempt
Typical pulse voltage	20 (V)
Peak power consumption	40 (W)
Max duty cycle	2 (%)
Max pulse duration	1 (ms)
Cables	CBLT003 included
Power supply mode	Strobe only, constant current driving
Estimated mtbf	50000 (hours)
Min sensor size	1"
Mount	C
Supply voltage
